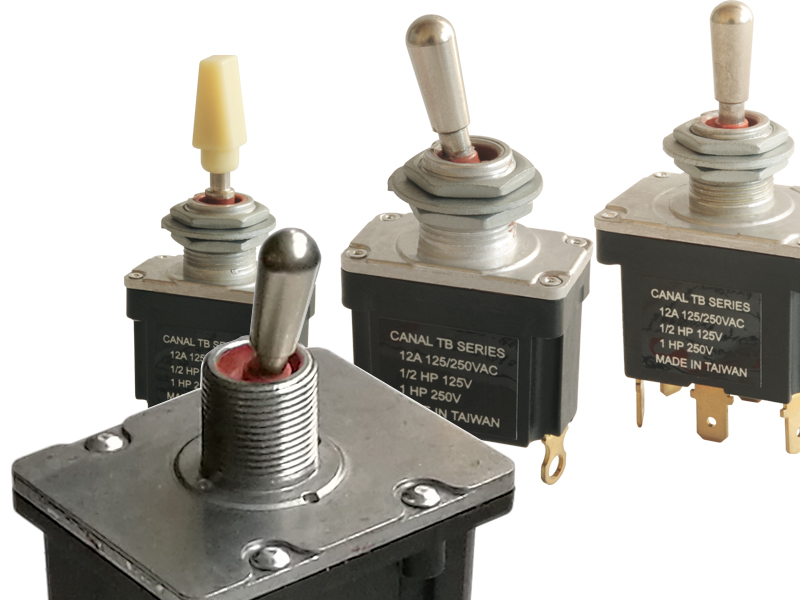

TB High Temperature Switch

Model：TB Series (HT)

UL&ENEC Approved High Temperature Unsealed Toggle Switch, up to 20(8)A 125/250V~T125/55

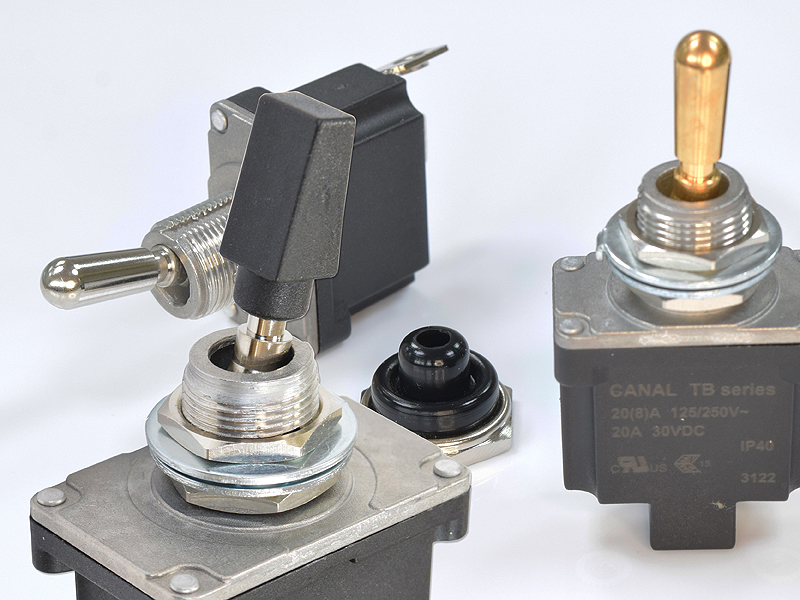

Heavy duty unsealed toggle switch, optional boots for splash and dust protection
Up to 20A, 125/250A, 78 inrush current for optional selection
Plastic or brass bat type actuator; 1, 2 pole, 2 or 3 positions, maintained and momentary action

Add to inquiry

Feature

UL61058-1 approved: (cURus , ENEC15)
- 16(8)A 125/250V~T55
- 20(8)A 125/250V~T55
- 16A 6~30VDC, T55
- 20A 6~30VDC, T55
- 16(8)A 125/250V~T125/55, 40T125/55 (Optional)
- 20(8)A 125/250V~T125/55, 40T125/55 (Optional)
- 16A 6~30VDC, T125/55, 40T125/55 (Optional)
- 20A 6~30VDC, T125/55, 40T125/55 (Optional)
UL1054 approved: (cURus)
- 12A 125/250VAC
- 1HP 250VAC, 1/2 HP 125VAC
- 5A 125VL (Tungsten)
Contact resistance : 50m Ω max
Dielectric Strength: 1500 Volts RMS
Insulation Resistance: 50 Megohms
Life: 10,000 cycles
Metal bat or plastic toggle
Solder, quick connect, screw type or binding terminals

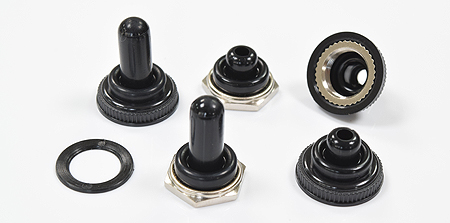

hex nut, gasket, and rubber boot accessories available upon request.

Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our TB series can offer an option up to 5A'L' up to 78A inrush that can be the appropriate switch to ensure your device's life and stability.

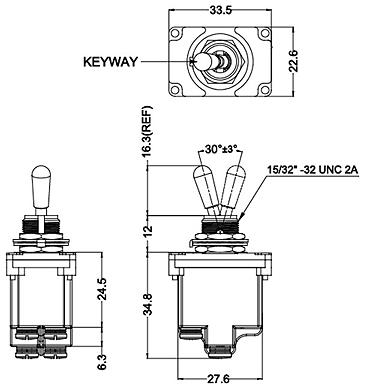

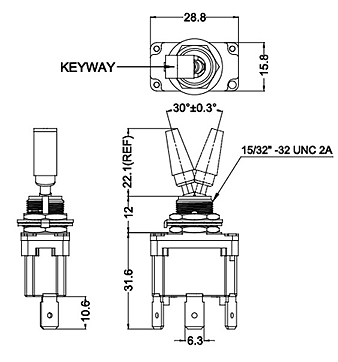

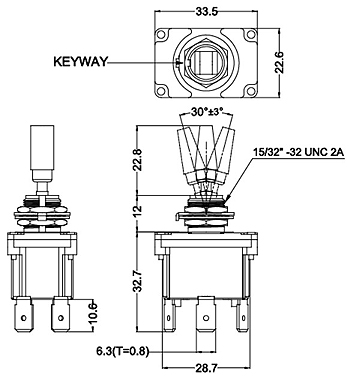

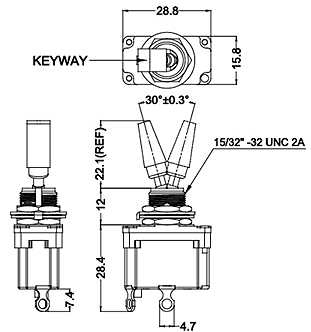

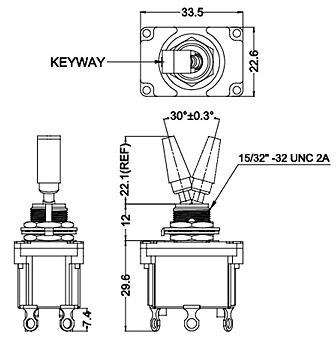

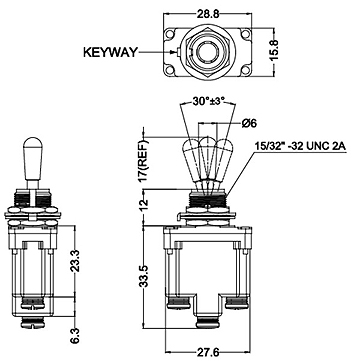

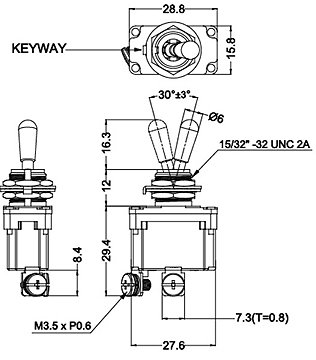

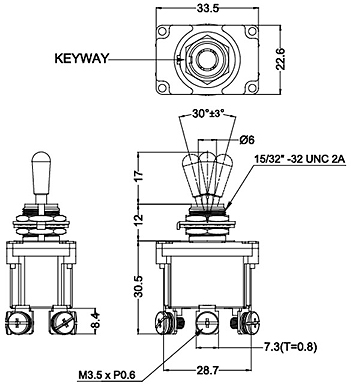

Specification

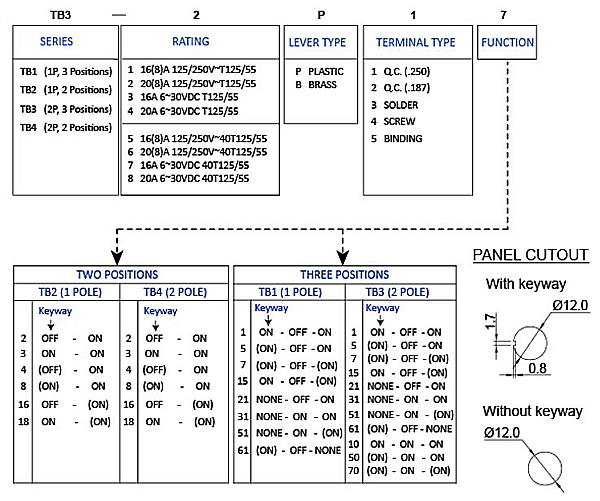

How to order
