TA, 6A 125VAC

TA, 6A 125VAC

Model：TA Series
TA
Toggle Switches with Wires up to 3A

Toggle Switches with Wires up to 3A 125 " L " Rating, Nameplate Optional
Antique design perfectly fitting brass-fashioned lighting or designs
Protection shield available upon request
Add to inquiry
Feature



  • Rating : 6A 125VAC, 3A 250VAC (UL,CUL,CE)
  • 3A 125VAC "L" (UL,CUL )
  • Initial contact resistance : 50m ohm (max.)
  • Insulation resistance : 500VDC 100M ohm (min)
  • Dielectric strength : 1,000VAC for 1 minute
  • Life cycle : 10,000 cycles
  • Temperature range : 0 to + 65 degrees in Celsius
  • Switching function : ON-OFF
  • Toggle actuator : Brass or Nickel-plated brass
  • Base : Phenolic, UL94V-0
  • Spring : Steel wire
  • Bushing : Brass or Nickel-plated brass
  • On-Off indicator plate: Brass or Nickel-plated brass, keyed to bushing
  • Base cover : Phenolic laminate
  • Nuts : Brass or Nickel-plated brass
  • Moving contact : Silver-plated brass
  • Fixed contact : Silver-plated copper alloy
  • Wire : 18 AWG, end can be stripped upon request

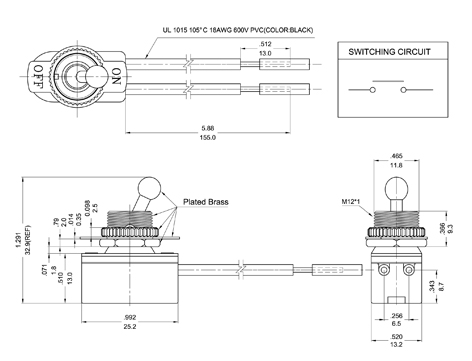

Specification

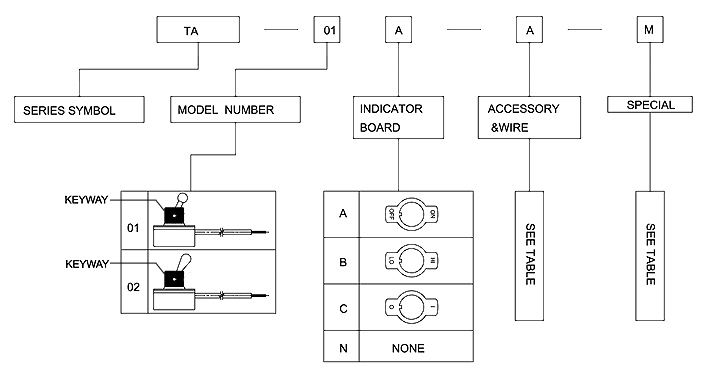

How to order

Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our TA series can offer an option up to 3A'L' ( 51A ) inrush that can be the appropriate switch to ensure your device's life and stability.

Item


TA-01A-G

Silver Color

TA-01A-01-B

Brass Color

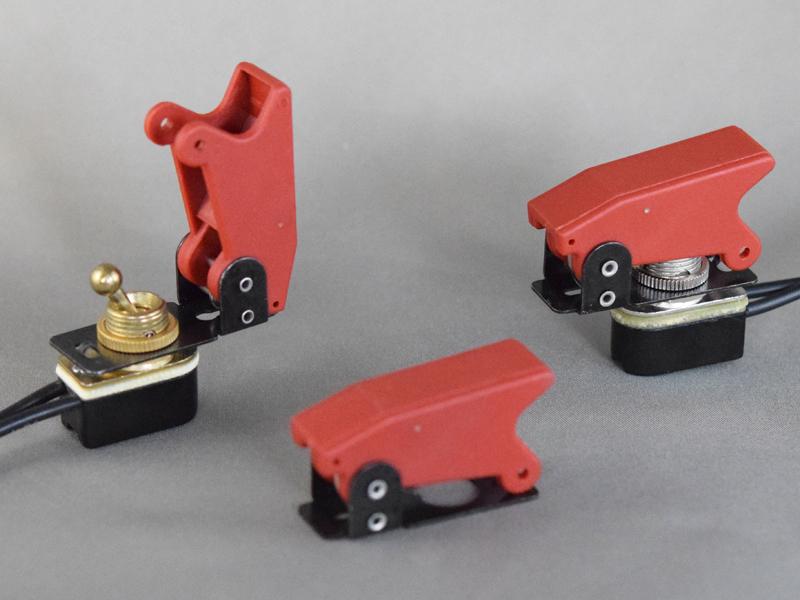

Protector Shield Available
