Model：T8012 AND T8013
T8012 AND T8013
T8012 AN T8013 are splash-protected switches above the panel. The terminals can be sealed to enhance further protection from soldering. The contacts can be gold-plated for DC low current application.
Shipped with hex-nut and rubber ring packed separately. The actuator can be mounted with a boot.
Add to inquiry
T8012 AN T8013 are splash-protected switches above the panel. The terminals can be sealed to enhance further protection from soldering. The contacts can be gold-plated for DC low current application.
Shipped with hex-nut and rubber ring packed separately. The actuator can be mounted with a boot.
Feature
- 5A 125VAC; 3A 250VAC
- Contact resistance : 50m Ω max
- Dielectric strength : 1,500 VAC for 1 minute
- Insulation resistance : 1000M Ω Max
- Operating temperature: -30°C~ +85°C
- Life: 50,000cycles
- Case: DAP, UL94-V0
- Actuator: copper alloy, chrome plated
- Bushing: copper alloy, nickel plated
- Housing: stainless Steel
- Bracket: brass, tin plated
- Terminals&Contacts: copper alloy, silver or gold plated
Specification
Photos of accessaries
Item

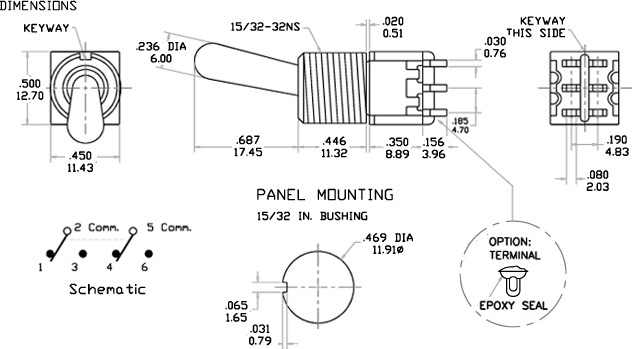

T8012 spec

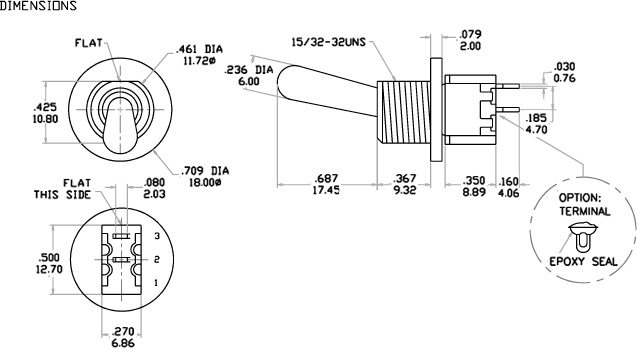

T8013spec
