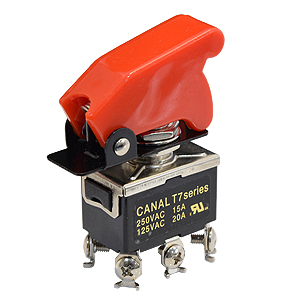

Model：T7 Series

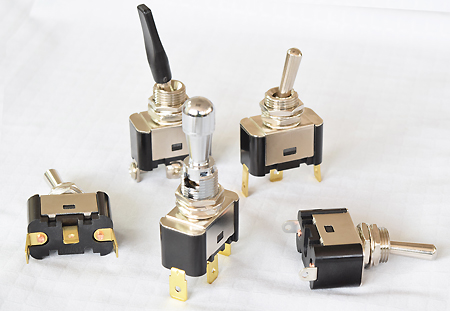

T7 Series
Toggle Switches, 20A 125VAC, 1 to 4 Poles, Locking Lever Available
T7 series toggle switches up to 20A 125VAC, 15A 250VAC
Function: SPST, SPDT, DPST, DPDT, 3PDT, 4PDT
Add to inquiry
Toggle Switches, 20A 125VAC, 1 to 4 Poles, Locking Lever Available
T7 series toggle switches up to 20A 125VAC, 15A 250VAC
Function: SPST, SPDT, DPST, DPDT, 3PDT, 4PDT
Feature
- Rating: 20A 125VAC, 15A 250VAC (cURus)
- Contacts Resistance: 20m-ohms max.
- Withstannd Voltage: 1500VAC for 1 minute
- CInsulation Resistance: 500VDC 200M-ohms min.
- Contacts: Silver alloy
- Bushing: Brass
- Actuator: Brass & Plastic
- Cover: Steel
- Nuts: Steel
- Housing: Phenolic
- Name plate available upon request
- Locking lever optional
Specification

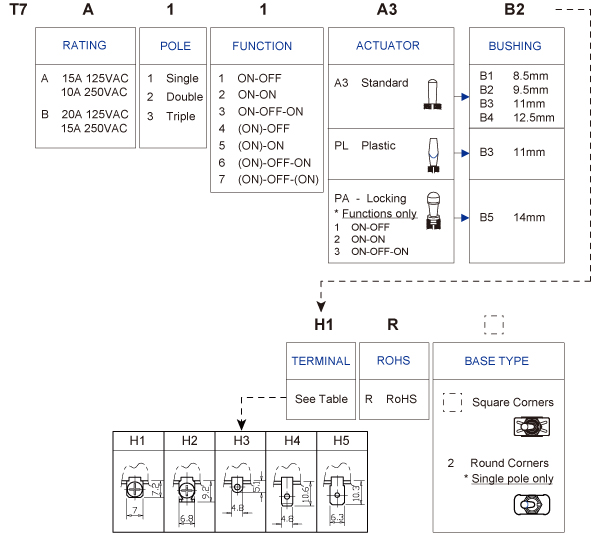

How to order
Round Corner Base Available
Item
|
locked toggle Soft Outlook, SPST |
 |
|

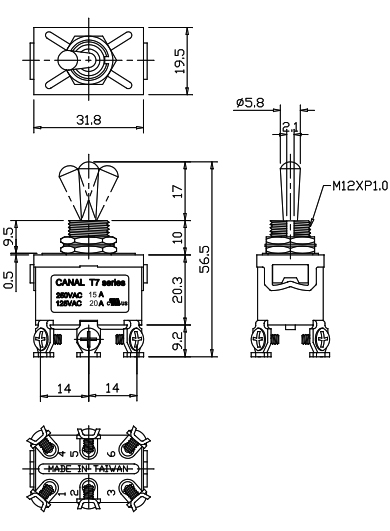

T7B23A3B2H2R |
 |
|

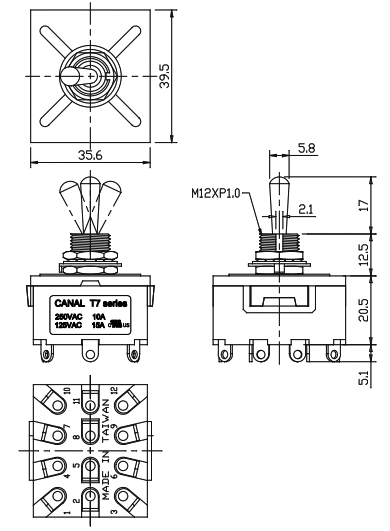

T7A43A3B4H3R |
 |
|

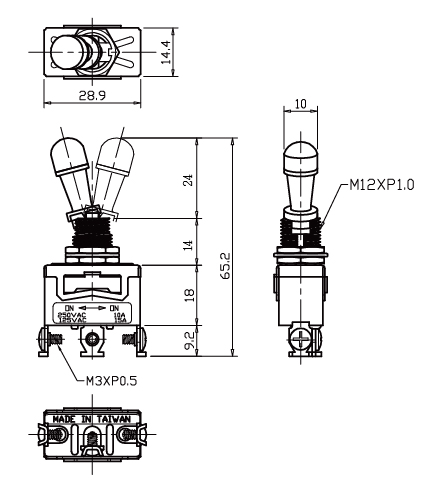

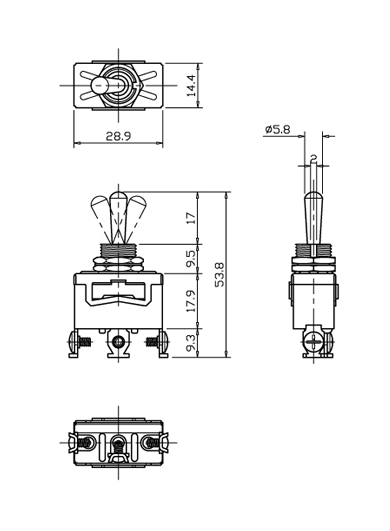

T7A12A3B2H2R |
 |
|

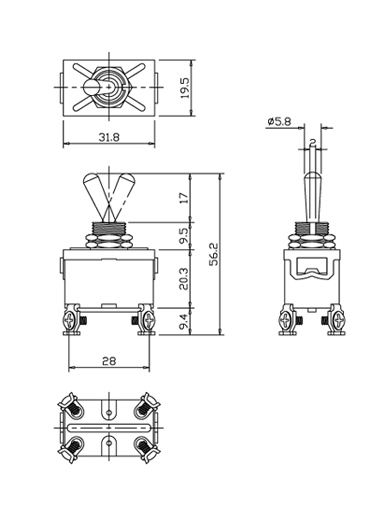

T7A21A3B2H2R |
 |
|
T7A12PAB5H2R |
 |
|

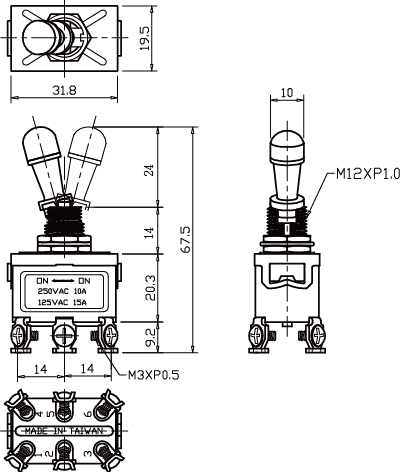

T7A22PAB5H2R |
|
|

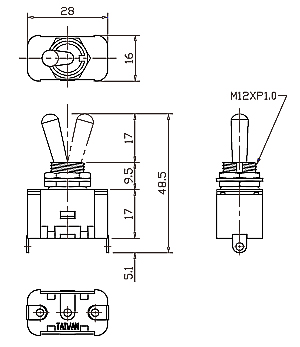

T7B11A3B2H3R2 |
 |
|

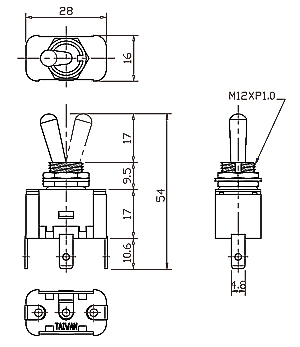

T7B15A3B2H4R2 |
 |
|

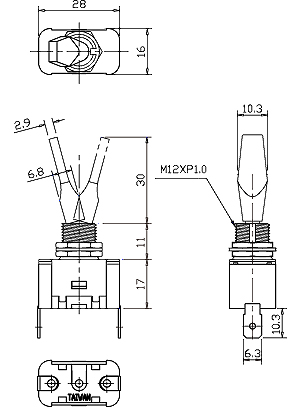

T7B15PLB3H5R2 |
.jpg) |
|

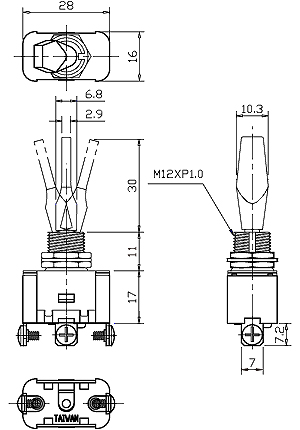

T7A13PLB3H1R2 |
.jpg) |
|

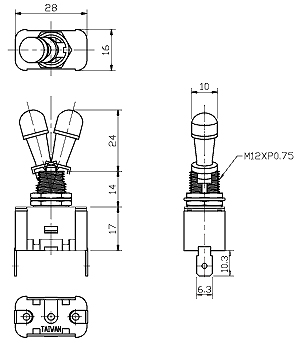

T7B11PAB5H5R2 |
 |
|
T7B12PAB5H5R2 |
 |
|

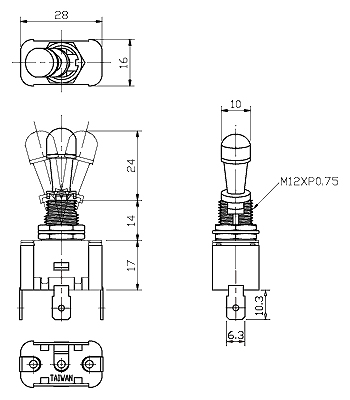

T7A13PAB5H5R2 |
 |

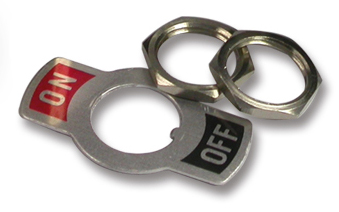

Name plate upon request:
