NE80, 6A 125VAC
NE80, 6A 125VAC
Model：NE80
NE80
IP67 LEVEL
Sealed miniature toggle switch, up to 6A 125VAC or 28VDC, 3A 250VAC
Add to inquiry
IP67 LEVEL
Sealed miniature toggle switch, up to 6A 125VAC or 28VDC, 3A 250VAC
Feature
- Rating: 6A 125VAC, 3A 250VAC (UL, CUL); gold plated 0.4A Max. @20VAC or DC Max.
- Initial contact resistance: 10m Ohms(max.)
- Insulation resistance: 1000M Ohms(min)
- Dielectric strength: 1,500VAC 1 min.
- Electrical Life: 50000 cycle; 6,000 (UL) cycles
- Operating Temperature: -30~+85 degree C
- Safety approved internationally by UL, CUL in North America
- SPDT, DPDT, DP3T
- Complete terminals options, solder, pc thro-hole and right angle pc
- Hardware accessories supplied for threaded bushing type
- IP67 waterproof level

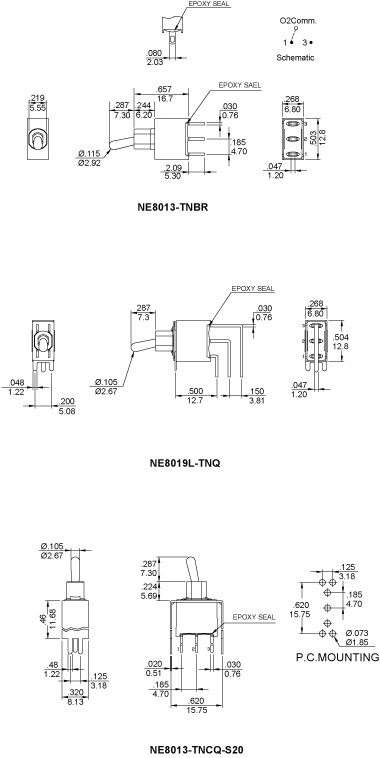

Specification

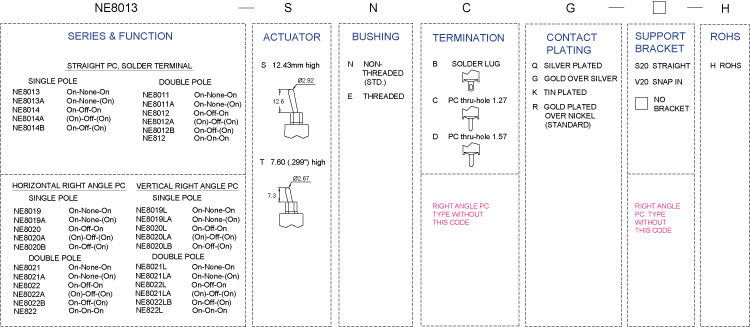

How to order
Item
