A , 5A 120VAC

• 5A 120VAC, 2A 250VAC (UL)
• 5A 28VDC (UL)
• Initial contact resistance : 10m ohm (max.)
• Insulation resistance : 1000M ohm (min)
• Dielectric strength : 1,000VAC for 1 minute
• Life cycle : 50,000 cycles
• Operating temperature : -30 to +130 degrees in Celsius
• Base : Diallyl phthalate (DAP)
• Toggle actuator : Brass
• Bushing : Brass, nickel plated
• Gasket: nickel-plated steel
• Nuts: Brass, nickel plated
• Housing : Stainless steel.
• Terminals : silver plated brass or gold plated optional
• contact : Silver plated copper, gold plated optional
• Epoxy sealed optional

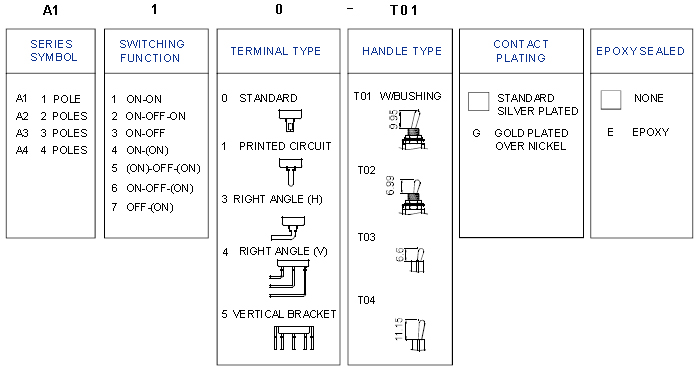

How to order
