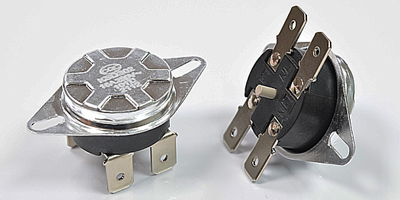

TM22 Thermostat Switches

• 5~50A 12/24VDC
• 5A,10A,15A,16A,25A,40A 125VAC
• 5A,10A,15A,16A,30A 250VAC
• Safety approvals: UL,CUL,TUV,CQC,CE
• Contact resistance: ≤ 50mΩ, at DC5V / 0.25A
• Insulation resistance: ≥ 100MΩ, at DC500V
• Dielectric strength: 1500VAC, 0.5mA for 3s
• Operation life: ≥ 100,000 cycles

• Operating temperature range: 0~300°C  (optional)
• Temperature accuracy: ±2, ±3, ±5, ±10°C
• Open & close temperature difference: 8~100°C (optional)
• Terminals: quick-connect .250 or .187 type
• Contact type: normal open, normal close
• Base material: ceramic or phenolic
• Application fields: disinfection cabinet,dishwasher, dryer,microwave, water dispenser, electric kettle, coffee maker, toaster, etc.

TM22-80K51015A2R4D

Phenolic base for 185°C

TM22-55K51015A2M4E

Ceramic base for 250°C

TM22xxA52016A1R4D

TM22045M5

TM22080M5

TM22090A5
