Model：SPK
Jacuzzi Illuminated Tact Switches with IP67 Protection Level, Non-lighted, Single or 3-color LED

SPK-series or JACUZZI switches, are mini-round push switches with long durable life up to 1M cycles.IP67 protected, suitable for pools and various outdoor applications.
Add to inquiry
Feature
  • 50mA 12VDC, SPST, OFF-Momentary ON
  • Initial contact resistance: 100m Ohms max.
  • Insulation resistance: 100M Ohms min, at 250VDC
  • Dielectric strength: 250VAC for 1 minute
  • Electrical life: 1,000,000 cycles
  • High bright multi-color LED light available
  • PCB or solder terminals
  • Protection level IP67, Durable long life
  • Suitable for jacuzzi, pool & outdoor application
  • Snap-in panel mounting or PCB through hole installation
  • LED light with wire available
Specification

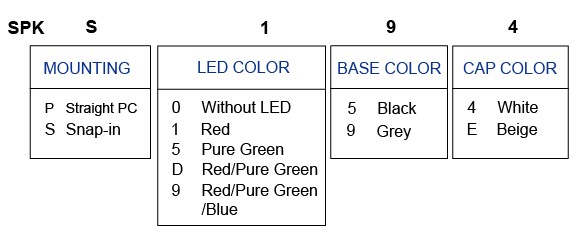

How to order

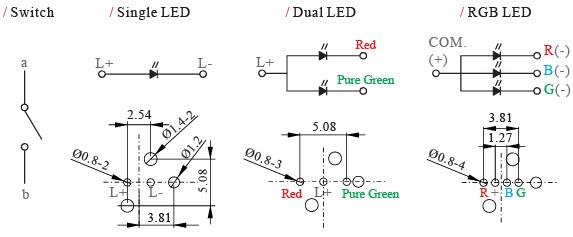

Circuit & PCB Layout

Panel cutout





Item

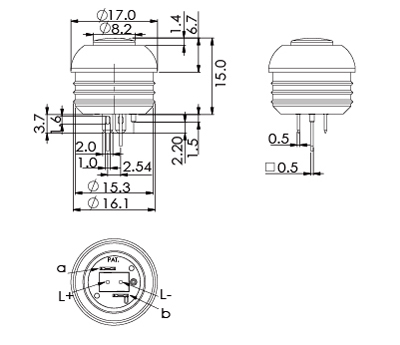

SPKS194

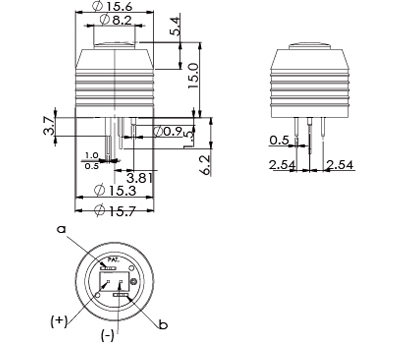

SPKP154

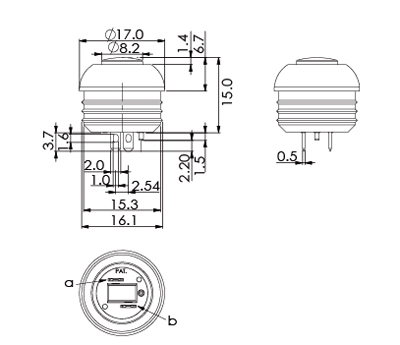

SPKS051

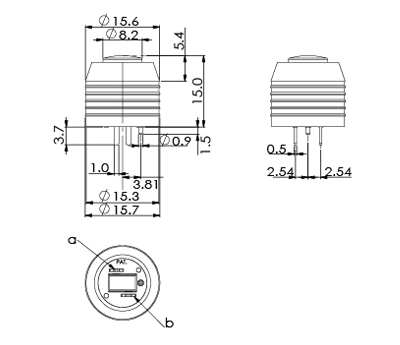

SPKP051

SPK Tact Switch with Wire

SPKSK54-1

SPKSS554-1
