Model：SPC
Bright LED Illuminated Tact Switches, Various Size

Illuminated tact switches up to 5A 125/250VAC OR 5A 30VDC, square, rectangular or round body, SPST, DPDT
Add to inquiry
Feature
  • Rating: 5A 125/250VAC or 5A 30VDC
  • Initial contact resistance : 50m Ohm max.
  • Insulation resistance : 200M Min.
  • Dielectric strength : 250 VAC for 1 minute
  • Temperature range : -25 to +50 degrees in celsius
  • Total Travel: 2.3mm+/-0.5mm
  • Operating force: 190gf +/- 50gf (SP), 200gf +/- 50gf (DP)
  • Electrical life: 10,000 cycles
  • SPST, DPDT
  • Single or RGG colors available
  • Square, rectangular or round type appearance.
  • PCB mounting or Snap in type mounting
  • Momentary and Alternative push function
  • Welcome to add icon or legend



Specification

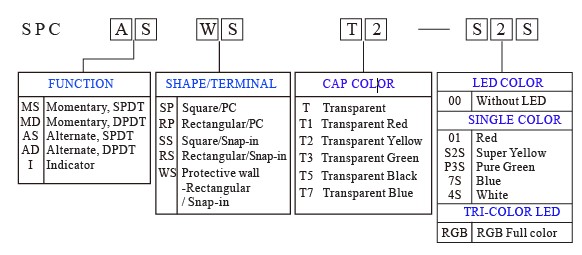

How to order

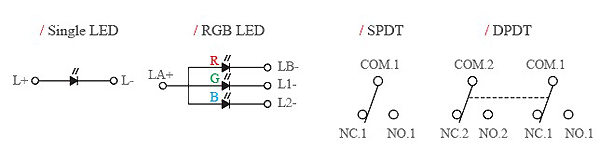

Contact Circuit

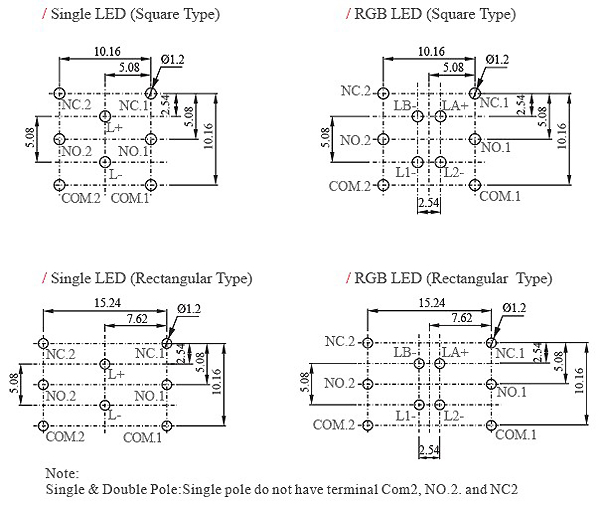

PCB Layout

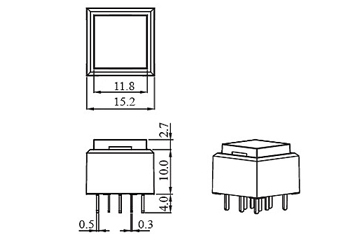

SPCADSPT3-P3S

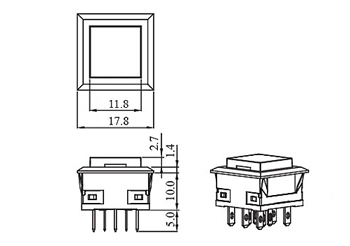

SPCMSSST1-01

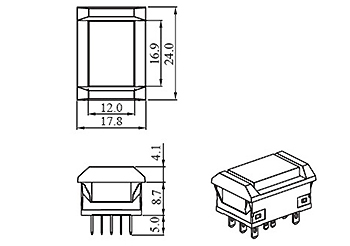

SPCASWST2-S2S



Item

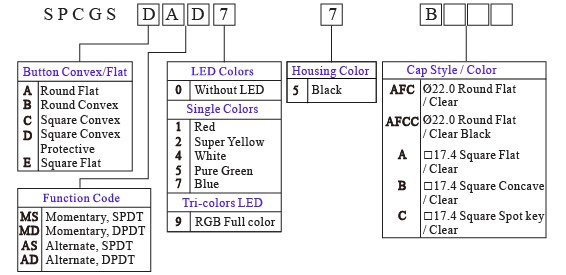

How to order

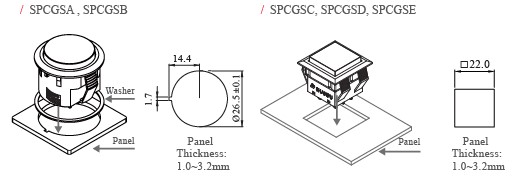

Panel cutout

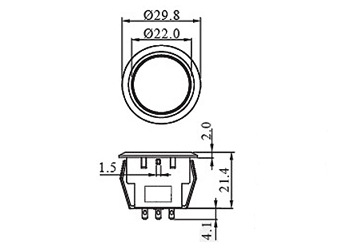

SPCGSAMS05AFCC

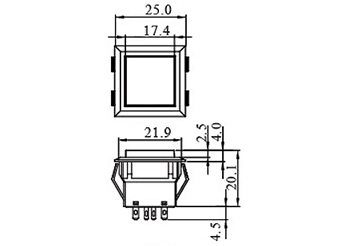

SPCGSCAD75A

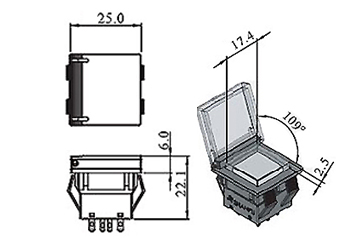

SPCGSDAD75B
