SK-1, SK-2 Right-angled Mini-slide Switches
SK-1, SK-2 Right-angled Mini-slide Switches
Model：SK-1, SK-2 Series
SK-1, SK-2 Series
Right-angled Mini-slide Switches with Hundreds of Options for Low-cost Solutions, 1 or 2 Poles
Wide variety of slide switch selections for various industry applications
Low cost and compact sized
Different knobs, pitches and housing, consult us for detailed specification
Non-shorting of shorting circuitry
Add to inquiry
Right-angled Mini-slide Switches with Hundreds of Options for Low-cost Solutions, 1 or 2 Poles
Wide variety of slide switch selections for various industry applications
Low cost and compact sized
Different knobs, pitches and housing, consult us for detailed specification
Non-shorting of shorting circuitry
Feature
- Rating: 0.3A/0.5A, 50VDC
- Contact resistance: 100mΩ(max.) initial
- Insulation resistance: 100MΩ (min) at 500VDC
- Dielectric strength : 500VAC for 1 minute
- Electrical life: 10,000 cycles
- Function: 1 ~ 2 pole, 2~5 throw multi-circuitry
- Cover : Nickel plated steel
- Knob: PA66
- Base : Phenolic Laminate
- PCB terminal: Silver plated brass
- Contact: PBS strip
Specification
|

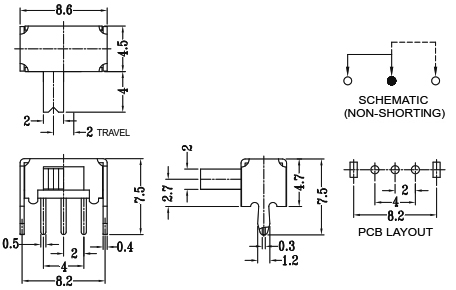

SK-12D02VG4 |
 |
|

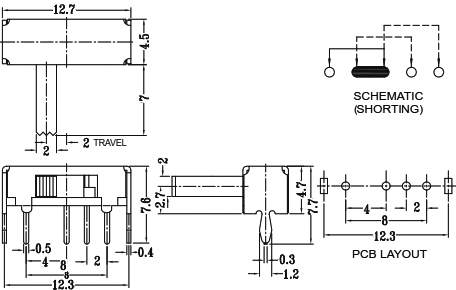

SK-13D01G7 |
 |
|

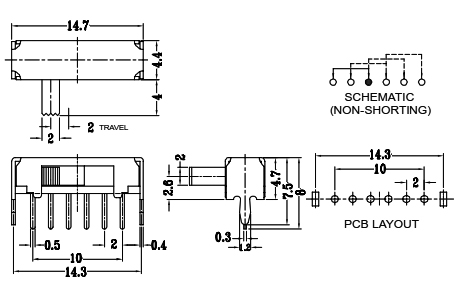

SK-14D01G4 |
 |
|

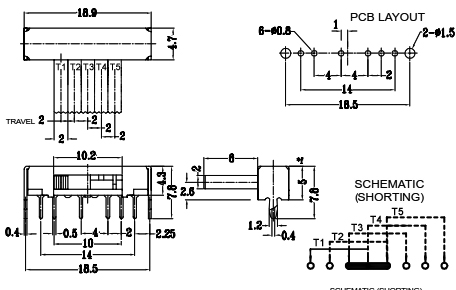

SK-15D01G8 |
 |
|

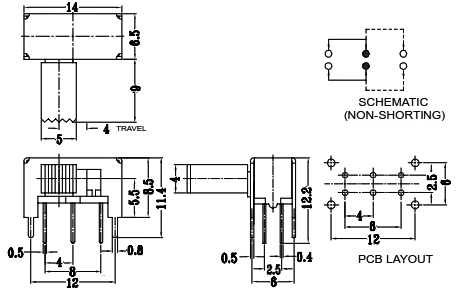

SK-22H09G9 |
 |
|

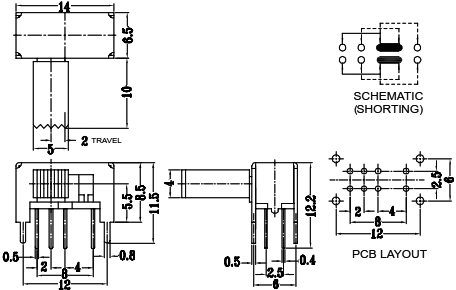

SK-23D09G10 |
 |
|

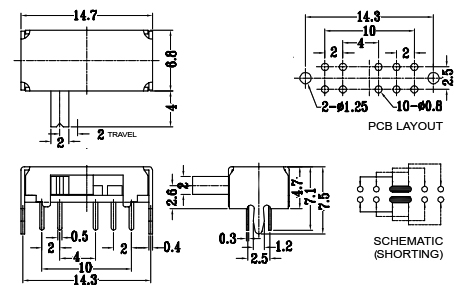

SK-24D17VG4 |
 |
