R7 Miniature Rotary Encoder

R7 Miniature Rotary Encoder

Model：R7 Series
R7
Miniature Rotary Encoder, 10 or 16 Steps, Flat or High Actuator, SMT or Dip Mounting

Miniature rotary encoder switches
10 or 16 Steps
Flat or 3.0mm height Actuator
Actuator top cross-sign or arrow-sign indented
SMT, DIP mounting
Add to inquiry
Feature
  • Switching rating : 25mA, 24VDC.
  • Non-switching rating : 100mA,50VDC.
  • Contact resistance : 100m Ohm max. at initial.
  • Insulation resistance : 100M ohm min at 100V DC, 1 minute ± 5 seconds
  • Dielectric strength : 250VAC/1minute..
  • Mechanical Life: 20,000 Steps
  • Operation: 10000 Steps.
  • Operational Force: 200gf-cm max
  • Storage Temperature: -40℃~ +85℃
  • Operation Temperature: -30℃~+80℃
  • Cover: Nickel silver
  • Base: PA9T High-temp Thermoplastic, black
  • Actuator : PA9T High-temp Thermoplastic, Color：Red
  • Contact : Alloy copper
  • Spring plate: Piano wire
  • Terminals : Brass with gold plated



Specification

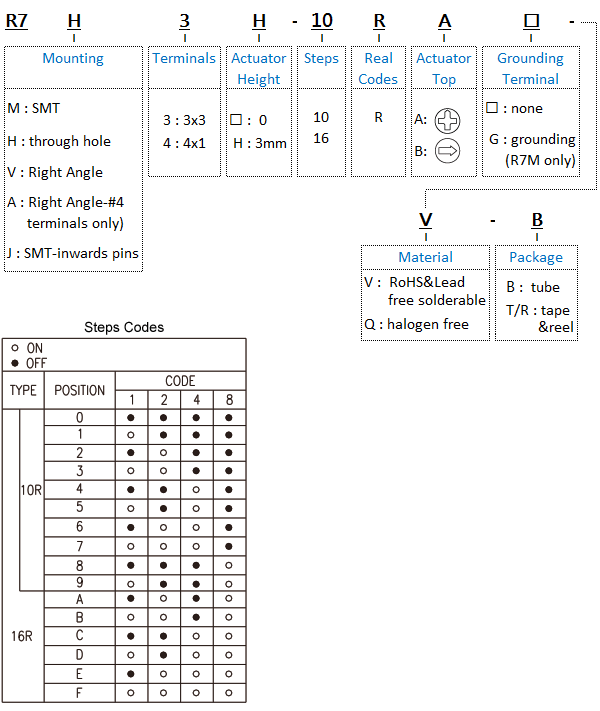

How to order

Item

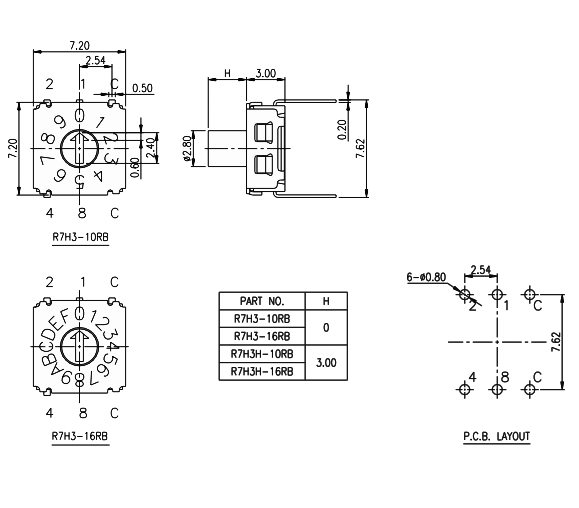

R7H3

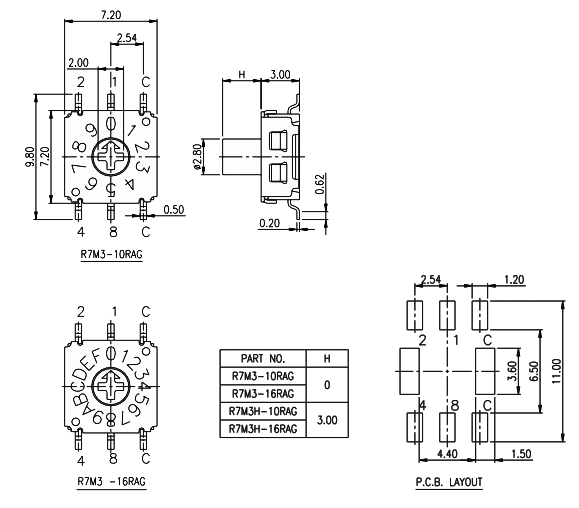

R7M3*-**RAG

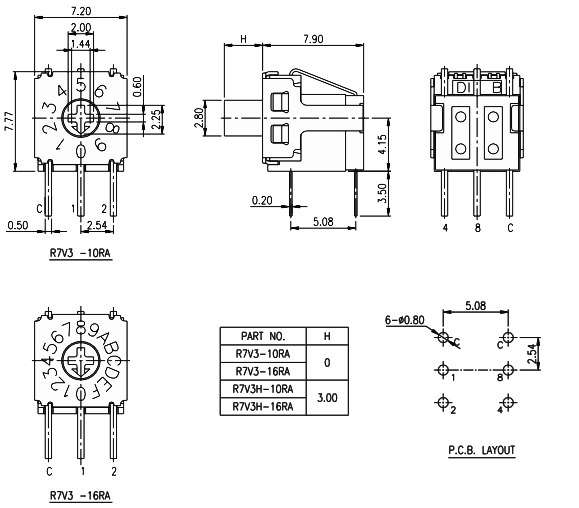

R7V3

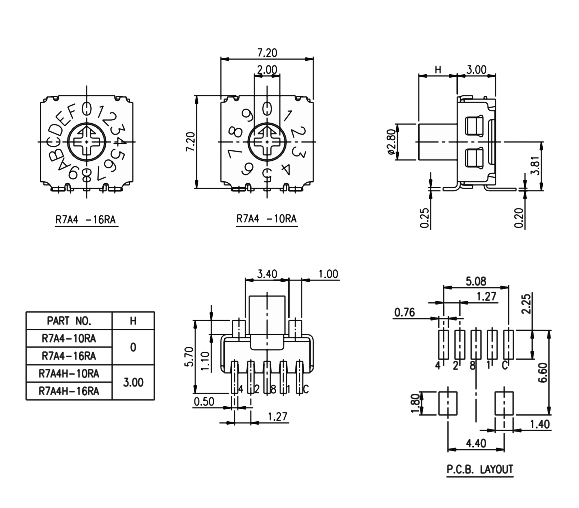

R7A4

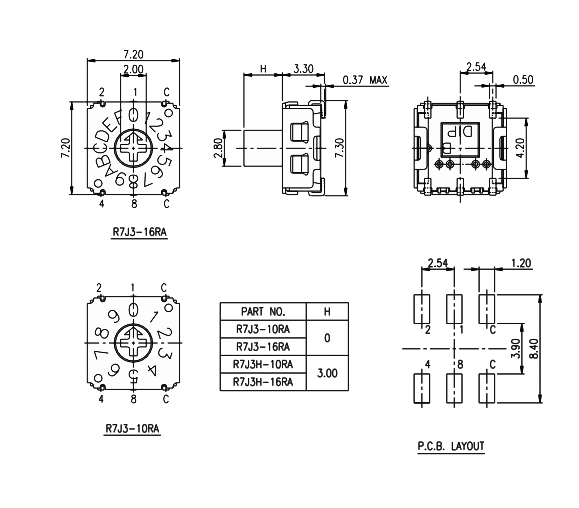

R7J3
