SW-273, Dia.13.3mm, 3A 125VAC
SW-273, Dia.13.3mm, 3A 125VAC
Model：SW-273 Series
SW-273
Dia.13.3mm, 3A 125VAC

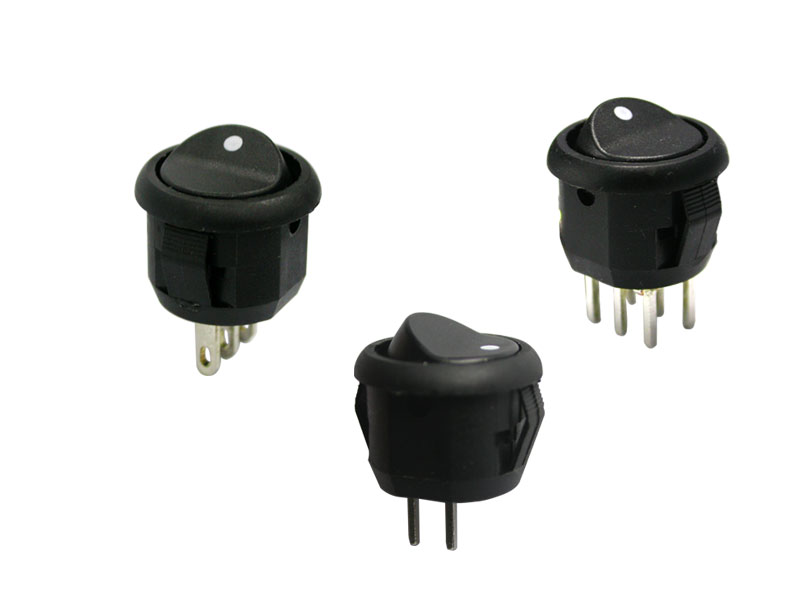

Ultra Small Round Rocker Switches, up to 3A 125VAC
Non-illuminated type, SPST, SPDT, DPDT
Add to inquiry
Dia.13.3mm, 3A 125VAC
Ultra Small Round Rocker Switches, up to 3A 125VAC
Non-illuminated type, SPST, SPDT, DPDT
Feature
- 3A 125VAC
- Mechanical life :100,000 cycles.
- Electrical life : 30,000 cycles.
- Base : Nylon 66
- Actuator : Nylon 66
- Terminals: Silver plated copper alloy
- SPST, SPDT, DPDT
-

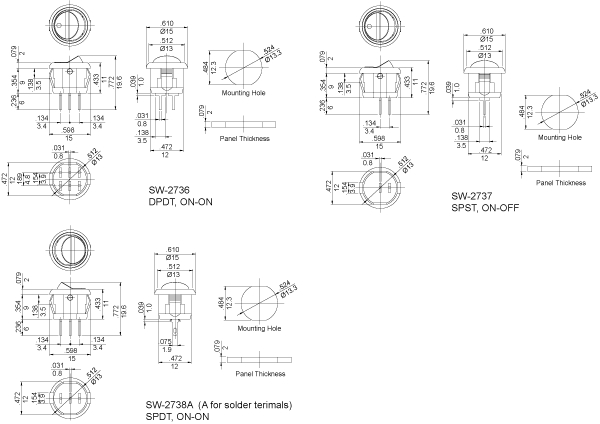

Dia. 13.3mm round snap-in cutout size
- Solder (P/N with "A" or PC terminals P/N without "A")
Item
