Model：MR2 Series

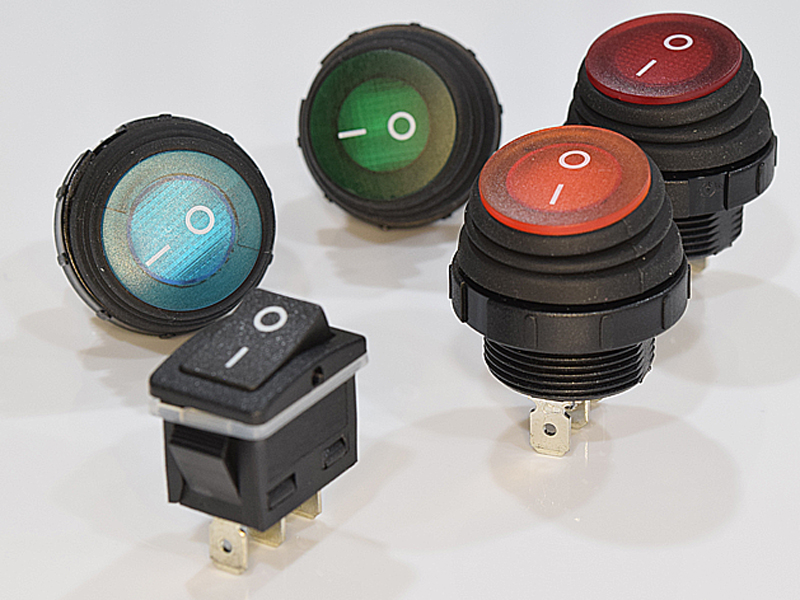

MR2 Series with Aesthetic Outlook
UL, CUL & ENEC recognized square & round mini rocker switch with IP68 protection, up to 16(8)A
13x19mm square or Ø20mm round mini rocker switches with IP68 protection level
Unique aesthetic designed
Snap-in mounting or screw nuts mounting
Illuminated or non-illuminated type
SPST or SPDT function
Patents pending
Add to inquiry
UL, CUL & ENEC recognized square & round mini rocker switch with IP68 protection, up to 16(8)A
13x19mm square or Ø20mm round mini rocker switches with IP68 protection level
Unique aesthetic designed
Snap-in mounting or screw nuts mounting
Illuminated or non-illuminated type
SPST or SPDT function
Patents pending
Feature
- 10(4)A 125/250V~T55, (cURs,ENEC15)
- 16(8)A 125/250V~T55, (cURs,ENEC15)
- 16RA 30VDC T55 , IP68 (cURs,ENEC15)
- Initial contact resistance : 20m ohm (max.)
- Insulation resistance : 100M ohm (min,) at 500VDC
- Dielectric strength : 1,500VAC for 1 minute
- Electrical life : 10,000 cycles
- Switch for Class II appliances
- Square type : Full waterproof IP68
- Round type : Over the panel IP68
- Illuminated actuator with red, green, blue, amber & white
- Nuts available in plastic or metal
- Base : Nylon 66, UL rated 94V-2 min
- Actuator : PC/Nylon 66, UL rated 94V-2 min
- Spring : Piano wire
- Contact : Silver alloy
- Terminals: Silver plated Copper
- Nut: Brass/Nylon 66
- Square type: China patent no: ZL201720184354.5
- Round type: Patents pending
- Application: Home appliance, automatic, medical , office equipments, etc.
Specification
How to order
.jpg)
Mounting hole
(1).gif)
Item
|
MR2-120C2N-NBBP |
.jpg) |
|
MR2-110R2N-NBBQ (plastic nut)
MR2-110R2N-NBBQ (metal nut) |
 |
|
MR2-110R2N-GBRQ (plastic nut)
MR2-110R2N-GBRQ (metal nut) |
 |
|
MR2-110R2N-GBGQ (plastic nut)
MR2-110R2N-GBGQ (metal nut) |
|
|
MR2-110R2N-GBUQ (plastic nut)
MR2-110R2N-GBUQ (metal nut) |
|
|
MR2-110R2N-GBOQ (plastic nut)
MR2-110R2N-GBOQ (metal nut) |
|
