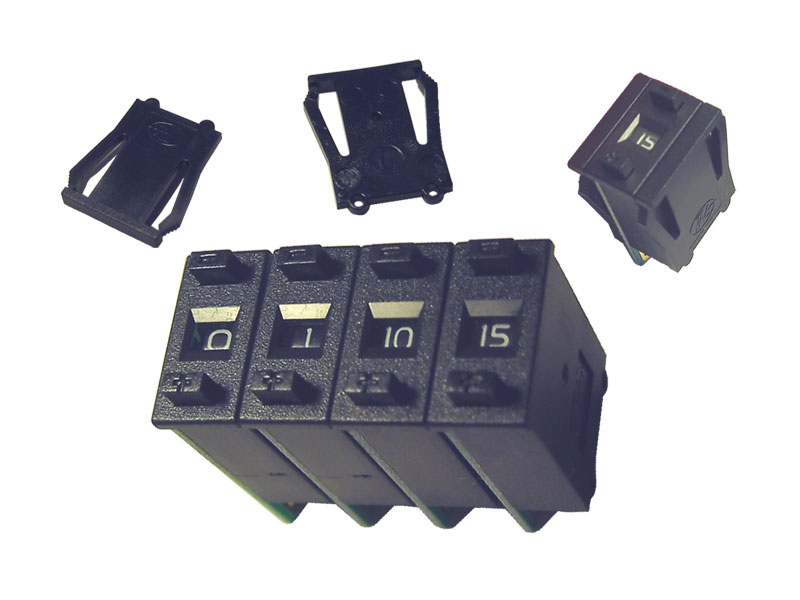

Model：PS-21/PS-3
PS-21/PS-3
Push Wheel switch
THUMB PUSHWHEEL SWITCHES UP TO 50VAC, 16 POSITIONS
Add to inquiry
Push Wheel switch
THUMB PUSHWHEEL SWITCHES UP TO 50VAC, 16 POSITIONS
Feature
- Rating: 50VAC/28VDC Max.
- Switching current: 100mA Max.
- Continuous current:500mA Max.
- Contact resistance: 100m ohms Max (initial).
- Insulation resistance: 1000M ohms Min.
- Dielectric strength: 500VAC 1 minute
- Operating temperature: -20°C~+65°C.
Item

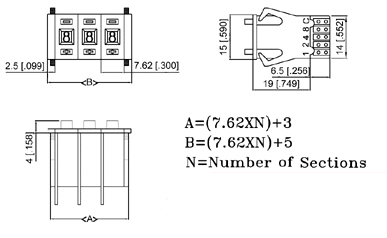

| PS-21 |  |

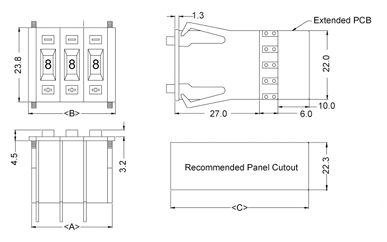

| PS-31/32 |  |
