Model：PK-12 Series
Mini anti-vandal switch M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Mini Anti-vandal switches up to 6A 250VAC
M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Nut and rubber ring attached for installation
CQC & CE safety approval
Add to inquiry
Mini Anti-vandal switches up to 6A 250VAC
M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Nut and rubber ring attached for installation
CQC & CE safety approval
Feature
- 6A 125/250V~µ5E4 (CQC, CE)
- 6A 3~48VDC µ3E4 (CQC, CE)
- 0.2A 250VAC / 0.5A 12VDC
- Contact resistance: 50m Ω(max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Mechanical life: 200,000 cycles
- Electrical life: 50,000 cycles
- SPST OFF-(ON), OFF-ON functions
- IP68 & protection level
- Non-illuminated, ring, spot illuminated
- M12 bushing, screw mounting
- Aluminum alloy, brass or Stainless steel body material
- Solder, screw terminals
- Safety approval: CQC, CE
Specification

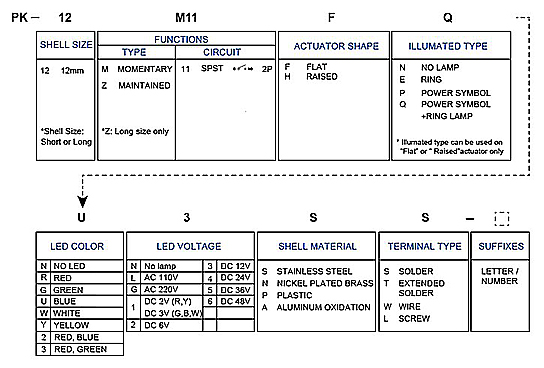

How to order
Item
|
|
 |
|
PK-12M11FNNNAS |
 |
|
|
 |
