PK-08 dia. 8mm Miniature Anti-vandal Metal Switches
PK-08 dia. 8mm Miniature Anti-vandal Metal Switches
Model：PK-08 Series
Dia. 8mm Miniature Anti-vandal Metal Switches, Illuminated or Non-illuminated, SPST function
Off-On function.
Illuminated with LED or non-illuminated.
Single pole, single throw, two terminals.
CQC & CE safety approval
Add to inquiry
Off-On function.
Illuminated with LED or non-illuminated.
Single pole, single throw, two terminals.
CQC & CE safety approval
Feature
- 6A 125/250V~µ5E4 (CQC, CE)
- 6A 3~48VDC µ3E4 (CQC, CE)
- 0.3A 36VDC
- Contact resistance: 50m Ω(max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Mechanical life: 200,000 cycles
- Electrical life: 50,000 cycles
- Safety Approval: CQC CE
- SPST, OFF-ON; IP65 protection level
- Non-illuminated, spot illuminated (LED)
- Screw mounting, nut torque: 5~14Nm
- Operating force: 300gf+/-50gf
- Operating Stroke: 3.0mm +/- 0.3
- Switch button / shell material: SUS
- Switch base: PA66
- Operating Temperature: -20°C ~ 85°C
Specification

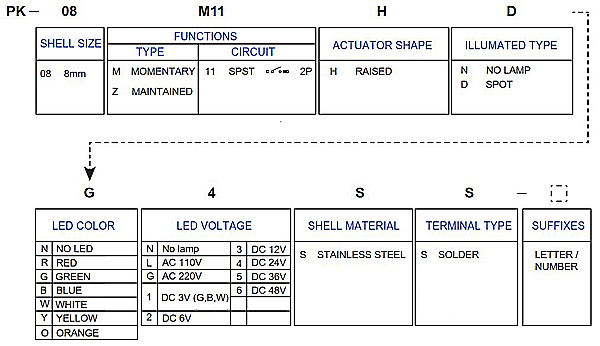

How to order
Item
|

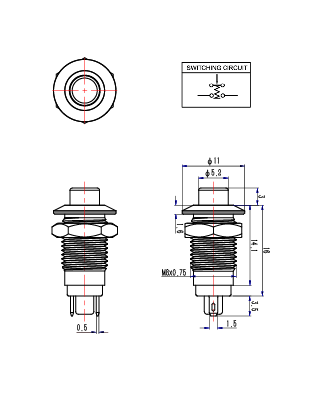

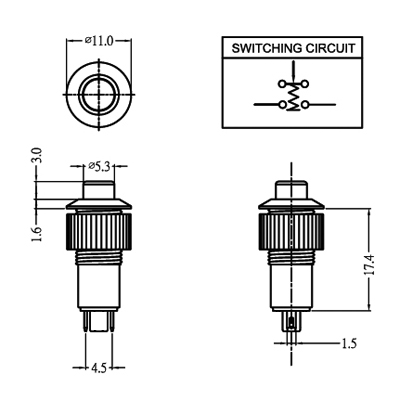

PK-08Z11HNNNSS |
 |
|

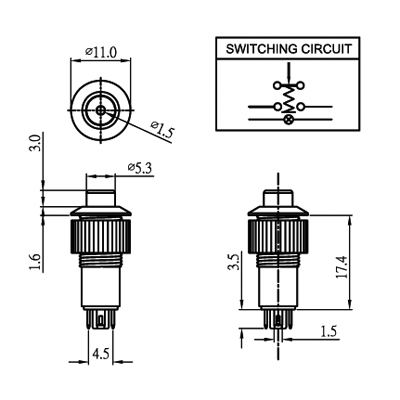

PK-08Z11HDG3SS with LED light |
 |
