Model：S216
S216, Ø19
Key lock switches, SINGLE POLE & DOUBLE POLE,20 Combinations available
Add to inquiry
Key lock switches, SINGLE POLE & DOUBLE POLE,20 Combinations available
Feature
- Contact Rating: 4A 125VAC, 2A 250VAC, 4A 28VDC (UL/CUL)
- Contact Resistance: 10Mini-Ohms Max
- Insulation Resistance: 500 Meg Ohms Min, (500VDC)
- Dielectric strength: 1500VAC-1 Minute
- Lock: Bright nickel plated zinc alloy with nickel facing
- Tumbler mechanism: 4-disc tumbler cylinder
- Keys: Brass with code no.
- Contacts:Golden plated cu (Q contact material)
- Terminals:Golden plated cu (Q contact material)
- All keyed alike or 20 combinations standard; 20 combinations available

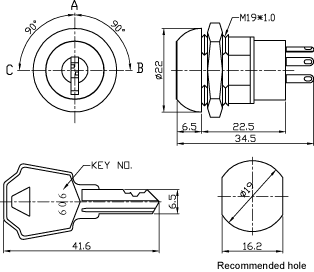

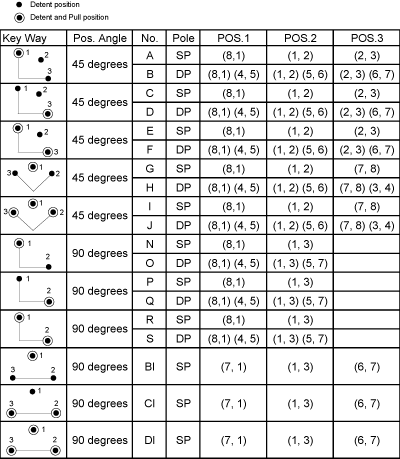

Specification
Ex. S216N, S216R
Item
