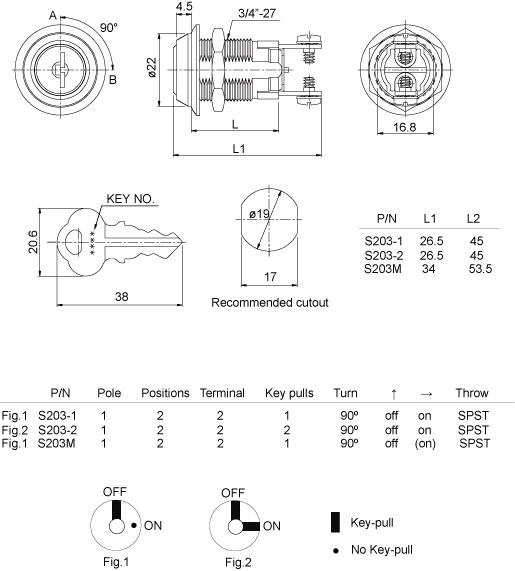

S203, Ø19
S203, Ø19
Feature
- Contact Rating: 4A 125VAC, 2A 250VAC.
- Contact Resistance: 10Milli-Ohms Max.
- Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
- Dielectric Strength: 1500 VAC -1 Minute.
- S203 2 position (off-on) 2 screw terminals.
- S203M 2 position (off-on) 2 screw terminals, spring
- Zinc alloy die cast housing and cylinder.
- Bright chrome plated standard.
- 11 disc tumbler mechanism.
- Reversible double-bitted brass keys
- Key may be withdrawn in one or both positions.
- loaded for momentary contact.
- Hex nut mounted.
- All keyed alike or 5 combinations standard.
- 5 combinations available.
- UL certification.
Item
