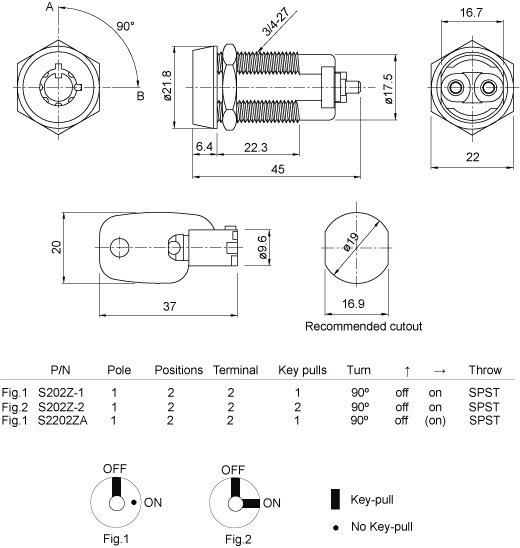

S202Z, Ø19
S202Z, Ø19
Feature
- Contact Rating: 4A 125VAC, 2A 250VAC.
- Contact resistance: 10 Milli - Ohms Max.
- Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
- Dielectric Strength: 1500VAC - 1 Minute.
- S202Z 2 position (off-on) 2 tubular terminals.
- S202ZA 2 position (off-on) 2 tubular terminals,
- Zinc alloy die cast housing and cylinder.
- Bright chrome plated standard.
- 7 pin tumbler mechanism.
- Steel made tubular keys, nickel plated.
- Key may be withdrawn in one or both positions.
- Silver plated contacts and terminals.
- spring loaded for momentary contact.
- Hex nut mounted.
- All keyed alike or one combination per 100pcs standard.
- 10000 combinations available.
- UL certification.
