S106, S116, Ø12
S106, S116, Ø12
Feature
- 200 Combinations available.
- 1A 125VAC, 0.5A 250VAC.
- Contact resistance : 10 m ohm max.
- Insulation resistance : 200 M ohm min. (500VDC)
- Dielectric strength : 1,000 VAC-1 minute.
- Housing: zinc alloy die cast, chrome plated.
- Zinc alloy keys, chrome plated with plastic cover.
- Silver plated contacts and terminals.
- 4 pins tumbler mechanism.

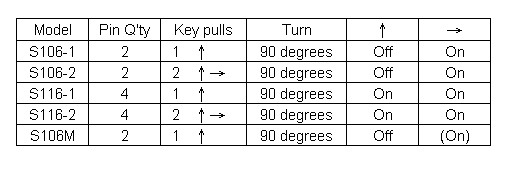

- S106 2 Positions (off-on) 2 Terminals.
- S106 2 Positions (on-on) 4 Terminals.
- S106M 2 positions (off-on) spring loaded for momentary contact.

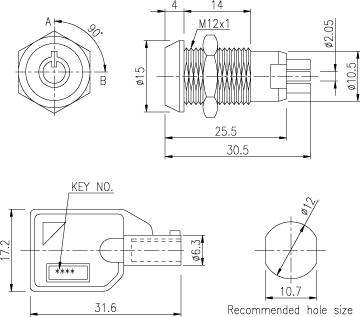

Specification
Item
