Model：NS117
NS117
Slim keylock switches, suitable for electric bike, motors
NS117 keylock switch is slim in size, perfectly suitable for an installation in limited space.
ON-OFF, SPST, with 90 degrees rotation key.
Key can be pushed and pulled from an single slot(NS117-1), or pushed in an slot, and pulled in another(NS117-2).
Add to inquiry
Slim keylock switches, suitable for electric bike, motors
NS117 keylock switch is slim in size, perfectly suitable for an installation in limited space.
ON-OFF, SPST, with 90 degrees rotation key.
Key can be pushed and pulled from an single slot(NS117-1), or pushed in an slot, and pulled in another(NS117-2).
Feature
- Rating: 0.2A 125VAC
- Zinc alloy die cast housing and cylinder.
- Bright chrome plated standard.
- 7 pin tumbler mechanism.
- Single pole, single throw
- Zinc alloy tubular keys, chrome plated, with plastic cover.
- Key withdrawn in one or both positions.
- Silver plated contacts and terminals.
- 2 position (off-on, 90 degrees turnkey), 2 terminals
- Hex nut mounted.
- All keyed alike or one combination per 100pcs standard.
- 5000 combinations available.

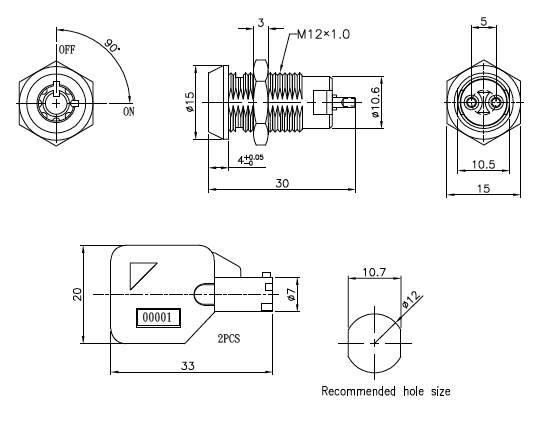

Specification
| Model | View | Positions | Keypull Postions |
↑ |
→ |
| NS117-1 |
|
2 |   |
off | on |
| NS117-2 |
|
2 |   |
off | on |
