Model：T7 Series
T7 PUSH SWITCH
Heavy Duty Push Switches, Metal Actuator, 15A 125VAC, SPT, DPST or DPDT

Heavy duty push switches
UP TO 15A 125VAC, 10A 250VAC
Function: SPST, SPDT, DPST, DPDT
Quick connect terminals
Mounted by nuts-fastening
Add to inquiry
Feature



  • Rating: 15A 125VAC, 10A 250VAC (cURus)
  • Contact Resistance: 20m-ohms max.
  • Withstand Voltage: 1500VAC for 1 minute
  • Insulation Resistance: 500VDC 200M-ohms min
  • Contacts: silver alloy
  • Bushing&Actuator: Brass
  • Cover: Steel
  • Nuts: Steel
  • Housing: Phenolic
  • Name plate available upon request
Specification

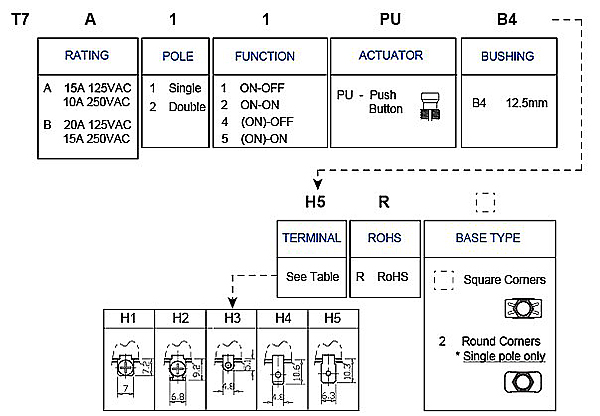

How to order

Round Corner Base Available



Item

T7B11PUB4H1R

T7A22PUB4H2R

T7A11PUB4H2R2

T7B12PUB4H5R2
