PS5 Round Pushbutton Switch Extended Model

PS5 Round Pushbutton Switch Extended Model

Model：PS5 Series
UL-recognized pushbutton Switches



Up to 16A and TV-6 Rating



IP68 panel waterproof



Metal and plastic thread options



M22, M25 bushing screw mounting



Exquisite round pushbutton design
Add to inquiry
Feature



  • 16A 125/250VAC (UL,CUL)
  • 16(4)A 250V~ T125/55 (ENEC)
  • 16(8)A 250V~ T125/55 (ENEC) optional
  • TV-6 125V~ T55, 25E3 (cURus) optional
  • 8[128]A 250V~T55 1E4 (cURus, ENEC15) optional
  • Initial contact resistance: 20mΩ max.
  • Insulation resistance: 100MΩ min. at 500VDC
  • Dielectric strength: 1,000 VAC for 1 minute
  • ON-OFF, or Momentary ON, DPST, SPST
  • Ring & power symbol illuminated icon available
  • LED illumination regardless of anode and cathode polarity
  • Quick-connect, solder and pcb terminals
  • M22 & M25 bushing, screw mounting
  • Metal and plastic thread options
  • IP68 panel waterproof
  • Enhanced brightness, short body.



Specification

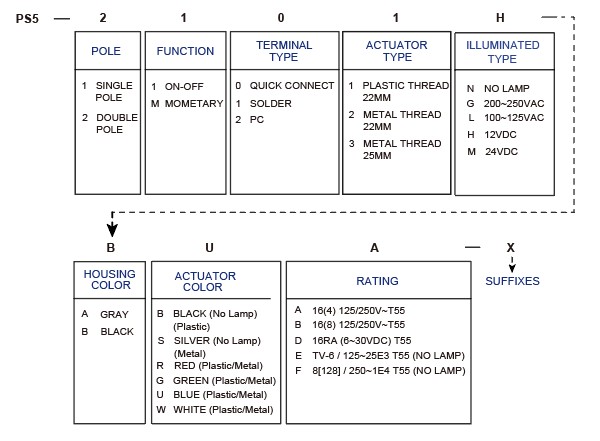

How to order

Panel cut-out



Item

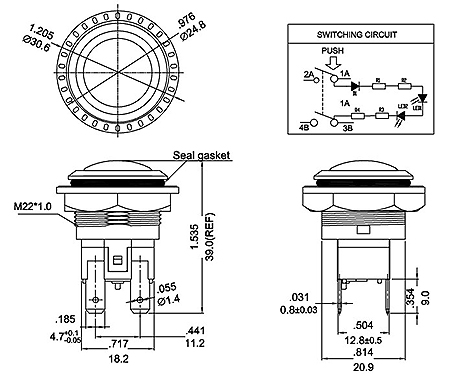

PS5-2101G-BUA-0PAC

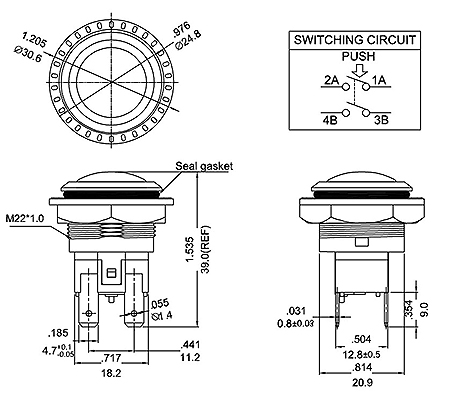

PS5-2101N-BBA-0PAC

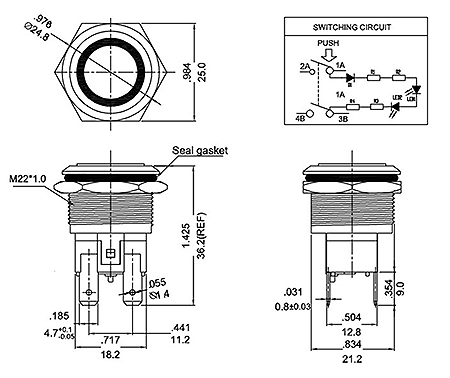

PS5-2102G-BUA-0RAG10

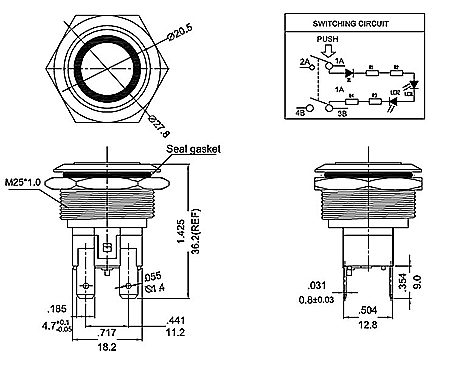

PS5-2103G-BUA-0RAC
