PK-16 Series M16 bushing, illuminated or non-illuminated, SPDT or SPDT

• 6A 250VAC μT55 5E4 (cURus, ENEC15)
• 6A 3/6/12/24/30/48VDC μT55 3E4 / 5E4 (cURus, ENEC15)
• 3A 125/250V~µ5E4 (CQC, CE)
• 3A 3~48VDC µ3E4 (CQC,CE)
• Contact resistance: 50m Ω (max.) initial
• Insulation resistance: 100M Ω (min)
• Dielectric strength : 2,000VAC for 1 minute
• Mechanical life: 200,000 cycles
• Electrical life: 50,000 cycles
• IP68 protection level
• Non-illuminated, ring or spot illuminated type
• Circuitry; OFF-(ON), OFF-ON, ON-(ON), ON-ON
• M16 bushing, screw mounting
• Optional case material and surface treatment
• Solder terminals or screw terminals
• Safety approval: UL, CUL, ENEC, CQC, CE

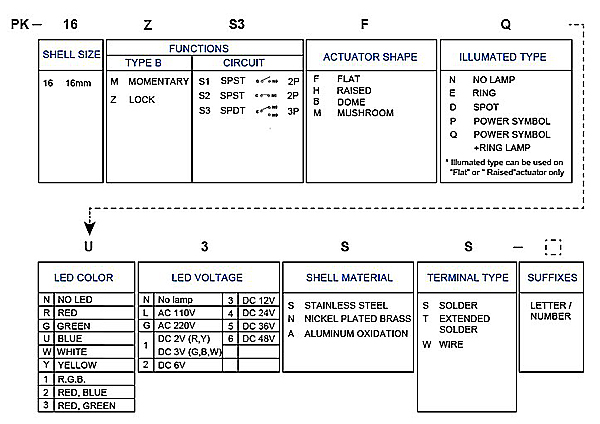

How to order
