JR-302G Series
JR-302G Series
Model：JR-302G Series
JR-302G SERIES
MULTI POWER OUTLET, FROM 2 TO 7 SOCKETS
Multi Power Outlet Appliances, Up To 15A 250VAC
UL, CUL, VDE and CCC approved
Multi-entry from 2 sockets up to 7 sockets in one single unit
Fitting different panel thickness as indicated in the How-to-Order tree
Add to inquiry
MULTI POWER OUTLET, FROM 2 TO 7 SOCKETS
Multi Power Outlet Appliances, Up To 15A 250VAC
UL, CUL, VDE and CCC approved
Multi-entry from 2 sockets up to 7 sockets in one single unit
Fitting different panel thickness as indicated in the How-to-Order tree
Feature
- 15A 250VAC (UL, CUL)
- 10A 250VAC (VDE, CCC)
- Insulation resistance: 100M Ohms min, DC 500V
- Dielectric strength: 2,000VAC for 1 minute.
- AC power inlet C18 according to IEC/EN 60320
- Easy Snap-in mounting
- Solder terminals available
Specification

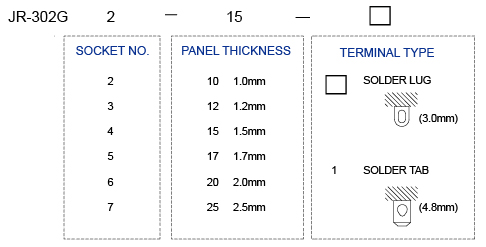

How to order
Item

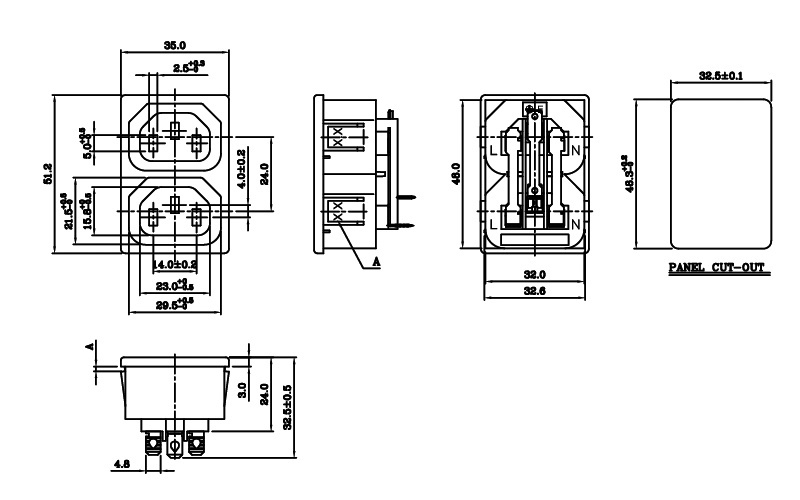

JR-302G2-15-1

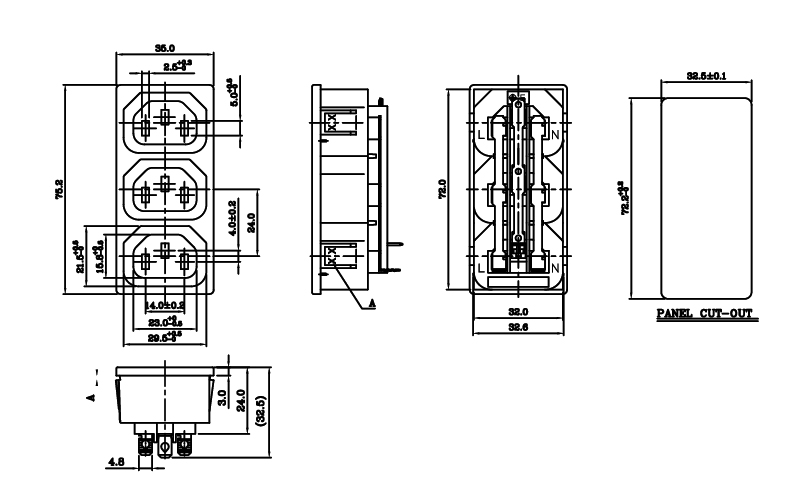

JR-302G3-15-1

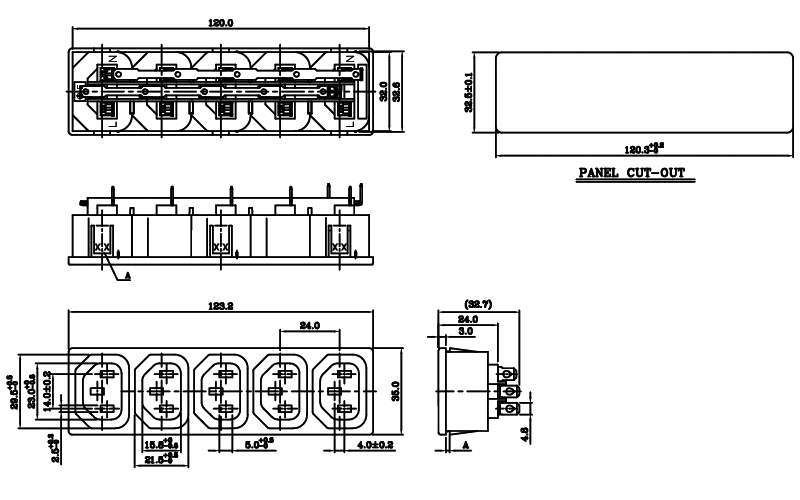

JR-302G5-15-1
