PBM Metal Indicator 8.0mm to 22mm
PBM Metal Indicator 8.0mm to 22mm
Model：PBM Metal Indicator
PBM Metal Indicator
Round Metal Indicator, with Diameter from 8.0mm to 22mm, Spot Light, O-ring Light, IP65 Protection
Indicator made of metal housing and knob
IP65 protection level
Available in various size from Dia 8.0mm to 22mm
Wide selection of LED color for illumination
Spot len, or rim-effect indication available
Add to inquiry
Round Metal Indicator, with Diameter from 8.0mm to 22mm, Spot Light, O-ring Light, IP65 Protection
Indicator made of metal housing and knob
IP65 protection level
Available in various size from Dia 8.0mm to 22mm
Wide selection of LED color for illumination
Spot len, or rim-effect indication available
Feature
- Lamp: LED
- Lamp life: 50000 hours
- Forward Current: 20mA
- Protection Level: IP65, IK08
- Nut torque: 5~14Nm
- Single color, Bi-color pr Tri-color LED upon request
- Base: PA66
- Shell: Brass, Ni plating
- Operation Temp: -20°C ~80°C
- Accessary: nut and rubber ring
- Other finishes like Chrome finish or #304 steel true color finish avaiable upon request

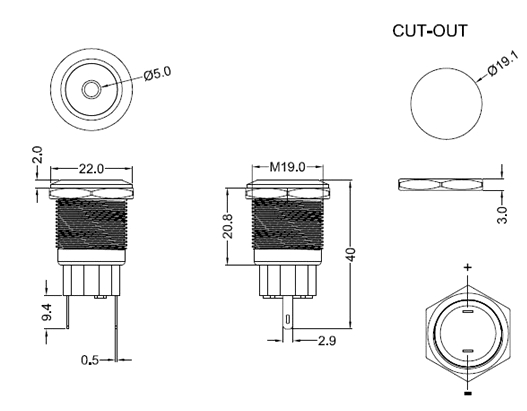

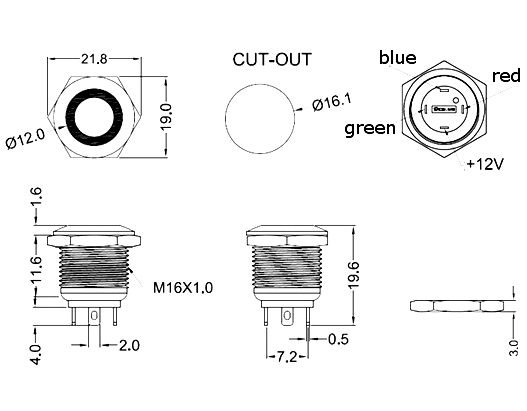

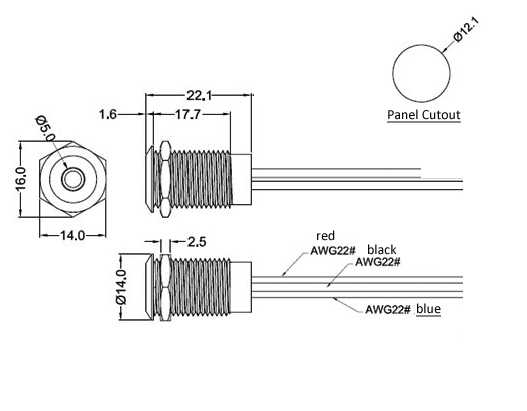

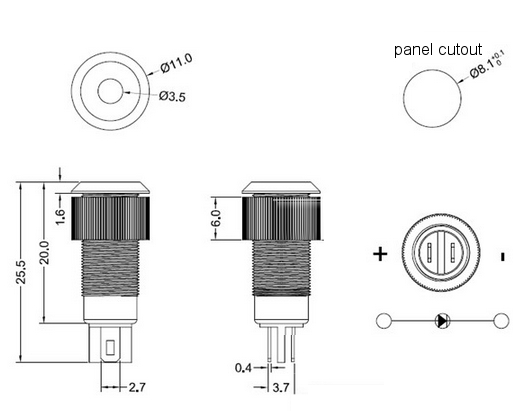

Specification

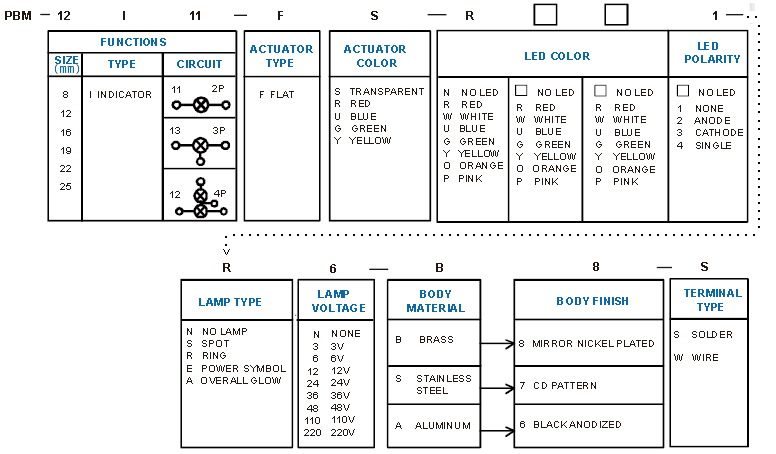

How to order
Item
|
PBM-8I11-FS-U1-S6-B8-S |
|
|
PBM-12I13-FS-**1-S6-B8-W (Bi-color Led with wire terminals) |
|
|
PBM-16I12-FS-RUG1-R12-S7-S (front view, tri-color led, 12V) |
|
|
PBM-19I11-FS-U1-S6-S7-S |
|
