VK Series Multi-function Socket, Power Inlet with Fuse Holder or Switch
VK Series Multi-function Socket, Power Inlet with Fuse Holder or Switch
Model：VK Series
Multi-function Socket, Power Inlet with Fuse Holder or Switch
EN60320 C14 Inlet with rocker switch and single fuse holder
Approved by UL, CUL, VDE/ENEC & CCC
C14 inlet up to 10A 250VAC
Snap-in or screw mounting
Solder or quick connect terminals
Add to inquiry
EN60320 C14 Inlet with rocker switch and single fuse holder
Approved by UL, CUL, VDE/ENEC & CCC
C14 inlet up to 10A 250VAC
Snap-in or screw mounting
Solder or quick connect terminals
Feature
- 10A 250VAC (UL, CUL)
- 10A 250VAC (VDE/ENEC, CCC)
- Fuse holder: 1x 2,5 W / 10 A 250VAC (VDE/ENEC)
- Insulation resistance: 100M Ohms min, DC 500V
- Dielectric strength: 1,500VAC for 1 minute
- AC power inlet C14 according to IEC/EN 60320
- Fuse holder according to IEC/EN 60127
- Fuse holder spec: for 5*20mm fuse
- Quick-connect or solder terminals
- Snap-in or screw mounting

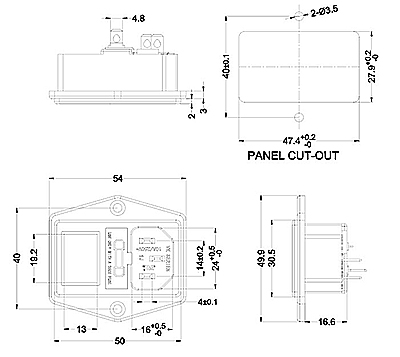

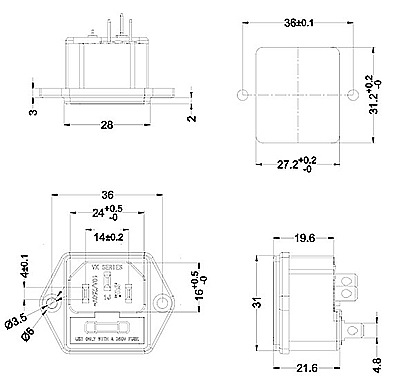

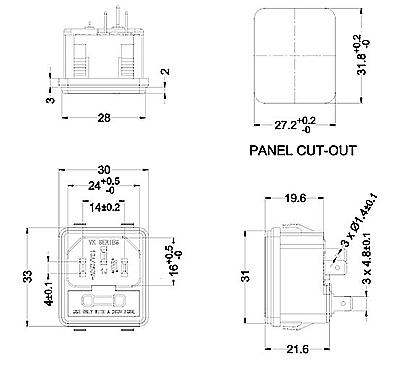

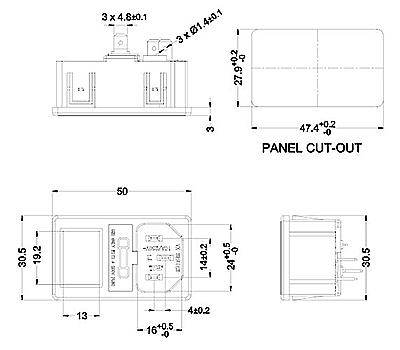

Specification

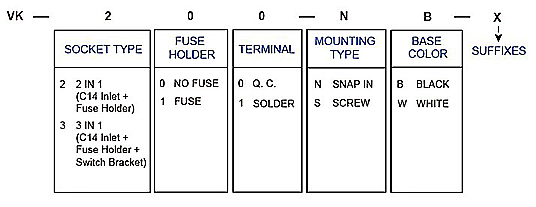

How to order
Item
|
VK-210-NB |
 |
|
VK-211-SW |
 |
|
VK-310-NB |
 |
|
VK-311-SW |
 |
