3545, Multi-Fuction Socket with Double-Fuse Holder, C14 Inlet
3545, Multi-Fuction Socket with Double-Fuse Holder, C14 Inlet
Model：3545-series
3545-series
Multi-Fuction Socket with Double-Fuse Holder, C14 Inlet 10A 250VAC, Additional Switch Optional
Multi-Fuction Socket with Double Fuse Holder
C14 Inlet Up To 10A 250VAC
Additional Power Switch Built In Available
Snap in Mounting or panel built with holes for screws fastening
Add to inquiry
Multi-Fuction Socket with Double-Fuse Holder, C14 Inlet 10A 250VAC, Additional Switch Optional
Multi-Fuction Socket with Double Fuse Holder
C14 Inlet Up To 10A 250VAC
Additional Power Switch Built In Available
Snap in Mounting or panel built with holes for screws fastening
Feature
- 10A 250VAC (UL, CUL)
- 10A 250VAC (VDE, ENEC 10, CCC)
- Fuse holder: Max. 10A / 2x2.5W 250VAC (VDE)
- Insulation resistance: 100M Ohms min, DC 500V
- Dielectric strength: 1,500VAC for 1 minute
- AC power inlet C14 according to IEC/EN 60320
- Fuse holder spec: for 5*20mm fuse
- Quick-connect or solder terminals
Item
|

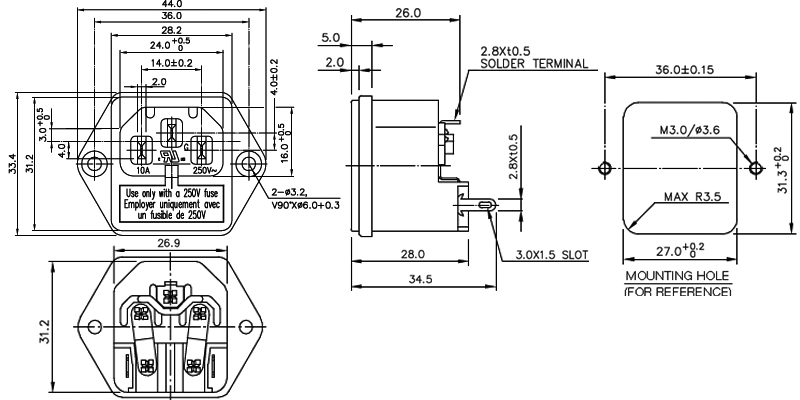

3545-T1B01 |
|
|

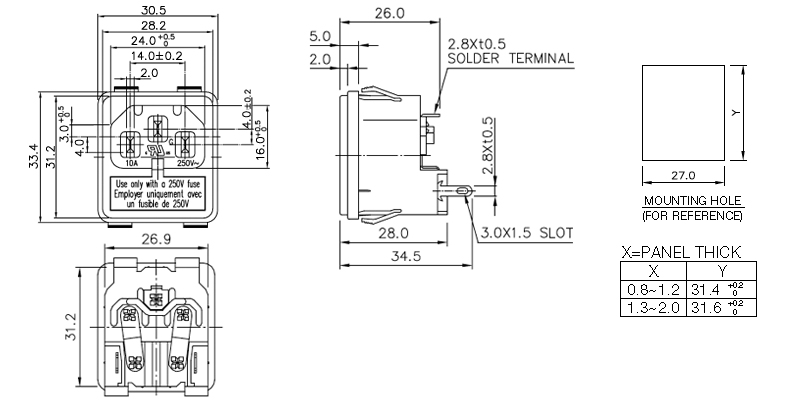

3545-T1B01A |
|
|

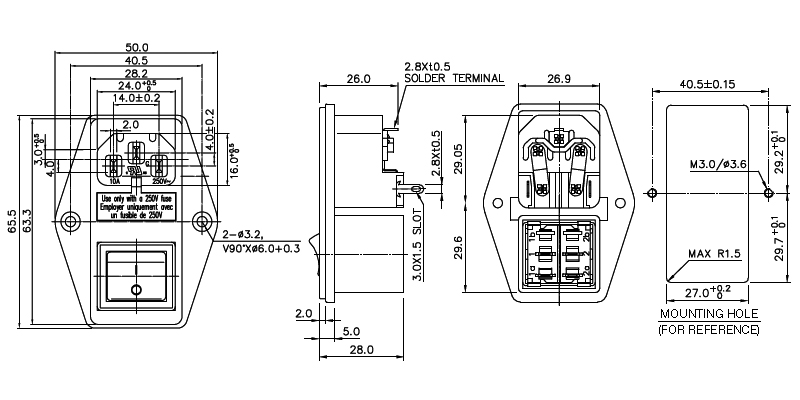

3545-T1B02 |
|
|

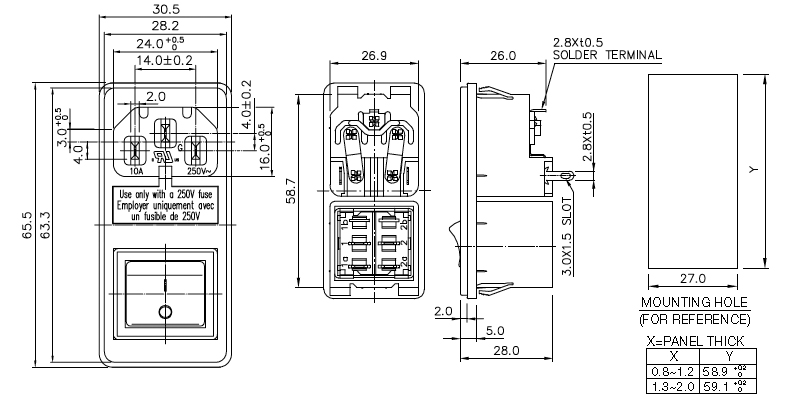

3545-T1B02A |
|
