AD60 Plastic Illuminated Buzzer, Available in Φ16mm / Φ22mm
AD60 Plastic Illuminated Buzzer, Available in Φ16mm / Φ22mm
Model：AD60 Buzzer
AD60 Plastic Illuminated Buzzer
Available in Φ16mm / Φ22mm
Wide range of AC/DC voltages available
Sound Level: ≥80dB(0.1m) for clear, high-decibel alerts
Integrated LED illumination with audible alarm
IP40 & IP65 rated versions
Add to inquiry
Available in Φ16mm / Φ22mm
Wide range of AC/DC voltages available
Sound Level: ≥80dB(0.1m) for clear, high-decibel alerts
Integrated LED illumination with audible alarm
IP40 & IP65 rated versions
Feature
- Rated voltage: DC 6V/12V/24V/36V/48V, AC 127V/220V/380V
- Rated Current: ≤20mA
- Insulation Voltage: 250VAC
- Withstand Voltage: 2000V 50Hz/ 1 min
- Illuminated type
- LED Lifespan: 40, 000 h (Reference value)
- Buzzer Sound Level: ≥80dB(0.1m)
- Wiring Method: Screw terminals
- Altitude: ≤ 2000 m
- Operating Temperature: -25°C to +70°C (No freezing)
- Storage Temperature: -40° C to +80°C
- Ambient Humidity: 45%-90% RH
Specification

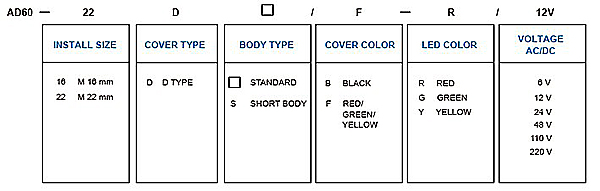

How to order
Buzzer display
Item
|
AD60-22DS/F-R/24V |
 |
|
AD60-22DS/B-R/24V |
|
