Model：MR Series
UL, CUL and ENEC Recognized Sealed Illuminated Rocker Switches, Doube-Pole or Single-Pole Available
13x19mm sealed illuminated rocker switches up to 16(4)A 125/250VAC
Above the panel IP65 protection rating
Illuminated or non-illuminated type
DPST or SPST function
Add to inquiry
Feature

  • Non-illuminated type: (cURus , ENEC15)
    16A (6~30VDC) T55, 1E4
  • Illuminated type: (cURus , ENEC15)
    16(4)A 125/250VAC T55, 1E4
    12(4)A 125/250VAC T55, 1E4
    12A  (6~30VDC) T55, 1E4
  • 10(4)A 250V~T125/55 1E4 (CQC)
  • Initial contact resistance : 20m ohm MAX.
  • Insulation resistance : 100M ohm MIN. at 500VDC
  • Safety approved internationally by UL, CUL, ENEC15 & CQC
  • DPST, SPST circuitry
  • Terminals options: quick-connect, solder and PCB pins
  • Optional IEC60335-1 glow wire test 750 degree C <=2 Sec
  • Built in with optional neon lamp, DC LED lamp upon request
  • Actuator with waterproof cover boot
  • Above the panel IP65 protection level
Specification

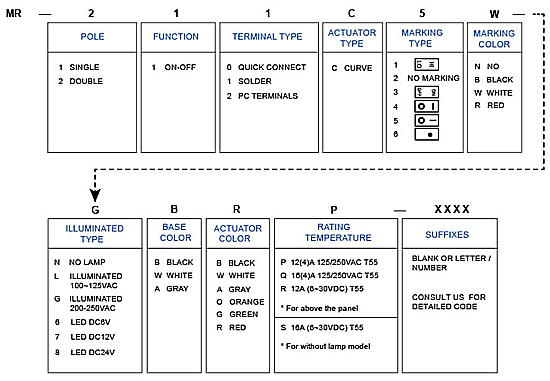

How to order

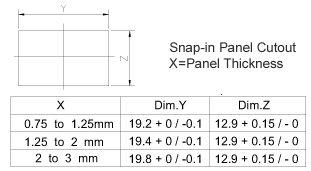

Panel cutout

Item

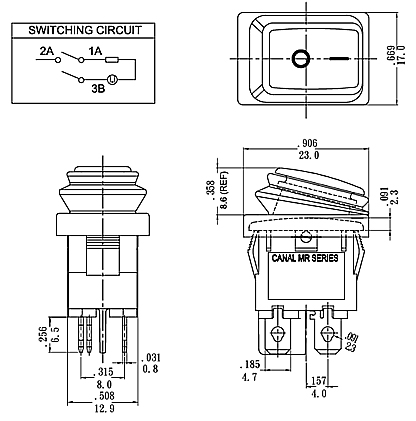

MR-111C5W-GBRP-1LGC

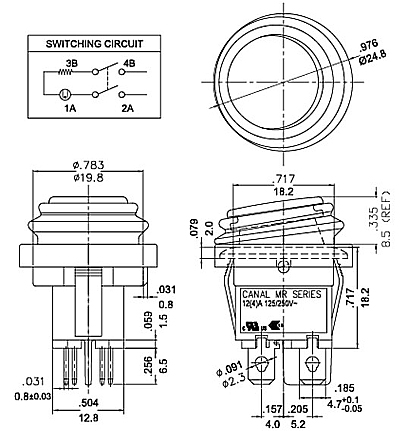

MR-111C5W-GBRP-12GC
