Multi-Fuction Socket

Multi-Fuction Socket

Model：KS-607
Multi-Fuction Socket, up to 15A 250VAC power inlet with mini rocker switch
IEC 60320 AC power inlet with switch
C14 inlet up to 15A 250VAC
Screw mounting
Solder lug or quick connect terminals.
Add to inquiry
Feature

  • 15A 250VAC (UL, CUL)
  • 10A 250VAC (ENEC)
  • 10A 250VAC (CCC)
  • Meet EN60320 requirements
  • Insulation resistance : 100M Ω (min.), DC 500V
  • Dielectric Strength : 2000Vac for 1 minute
  • Housing: PBT, PA66 or PC, UL rated 94V-2 min
  • Temperature range : -20°C~ 85°C
  • Terminals: Tin-plated brass
  • Switch size: for 6.8*19mm mini rocker switch with SPST, SPDT circuit

* For detailed specifications of the switch, please link to the following product website:

Specification

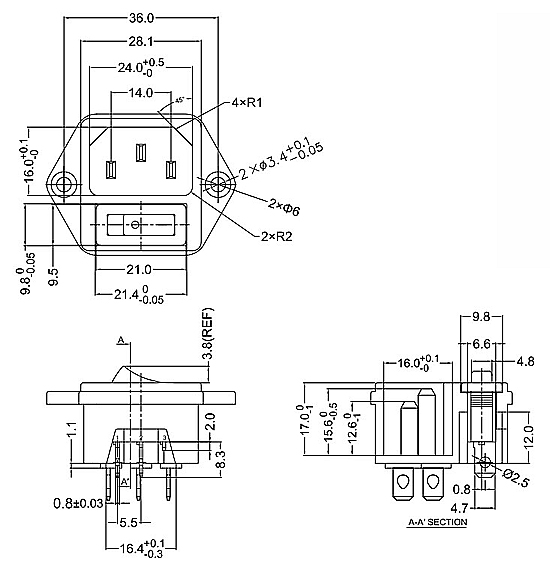

KS-607-1-A1

KS-607-1-A2

KS-607-1-A3
