型號：98 Series
98 SERIES
3A~30A manual reset
THERMAL CIRCUIT BREAKER, FROM 3A UP TO 30AMP
Wide selections of terminals, bushing and caps
加入詢問
3A~30A manual reset
THERMAL CIRCUIT BREAKER, FROM 3A UP TO 30AMP
Wide selections of terminals, bushing and caps
Feature
- Rating: 3.0Amp - 30.0Amp
- Input power: 125/250Vac, 50Vdc, 50/60Hz
- Interrupt capacity: 1000Amp, 125Vac; 200Amp, 250Vac
- Dielectric strength: 1500Vac, 1 minute
- Resettable overload capacity: 10 times rated current
- Voltage drop: less than 0.25V
- Insulation resistance: 500 M. ohms
- Reset time: within 60 seconds
- Temperature rise: less than 65 degrees in Celsius, at 100% of rated current applied continuously at 25 degree in Celsius

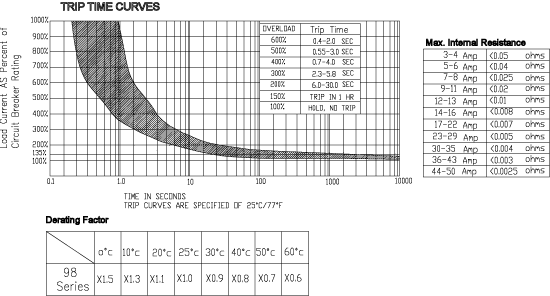

- Calibration (at 25 degree)
100% of rated current: hold, no-trip
135% of rated current: trip in 1 hour
200% of rated current: within 40 seconds trip
300% od rated current: within 10 seconds trip

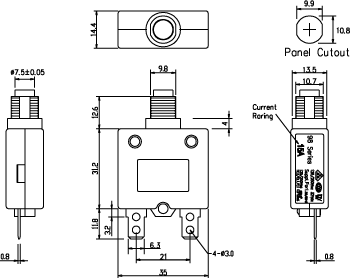

Specification
How to order
Item
| 98-15-P1B14 |  |
Water Proof Nut
