Model：MR6 Series
DPST Mini-rocker switches, 20A 125VAC in UL/CUL, High inrush current up to 141A

MR6 SERIES OFFER A SOFT FEELING BUT STRONG CHARACTER OF HIGH CURRENT
High Inrush Current up to 141A on request
DOUBLE POLE ROCKER SWITCHES UP TO 20A 125VAC
Soldering, PCB or Quick Connecting Terminals
Add to inquiry
Feature



  • UL61058-1 (cURus , ENEC15)
    12(4)A 125/250V ~T55, T125/55 6E3, 1E4
    16(8)A 125/250V ~T55, T125/55 6E3, 1E4
    16A 6~30VDC, ~T55, T125/55 6E3, 1E4
    8[128]A 250V~ T55, 1E4
    TV-10 /125V~T55, 25E3
  • UL1054 approved: (cURus)
    20A 125VAC, 16A 250VAC 6E3
    TV-10 /125VAC 25E3
  • Initial contact resistance : 20m ohm (max.)
  • Insulation resistance : 100M ohm (min,) at 500VDC
  • Dielectric strength : 1,500VAC for 1 minute
  • Safety approved internationally by cURus in North America, ENEC15 in Europe
  • Standard 12.9x19.2mm snap-in cutout size
  • DPST, SPST circuitry
  • With or without illuminated type
  • Complete terminals options quick-connect, solder and PCB pins
  • Waterproof cover boot as optional accessory



What is Inrush Current? And why MR6?

Quoted from Wekipedia:
~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our MR6 series can offer an option up to TV10 or equivalent to 141A inrush that can be the appropriate switch to ensure your device's life and stability.

Specification

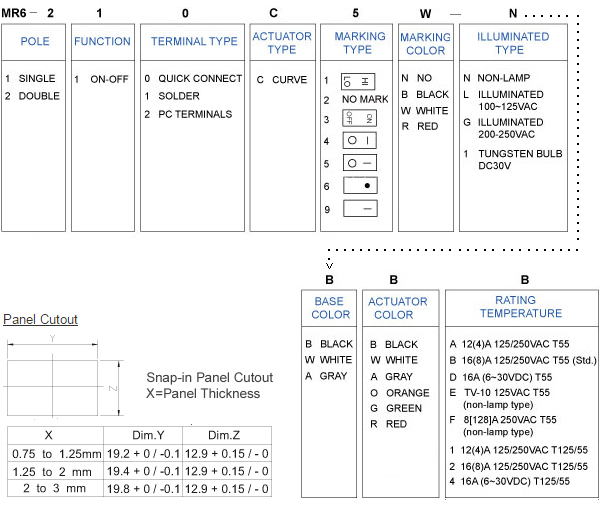

How to order

Item

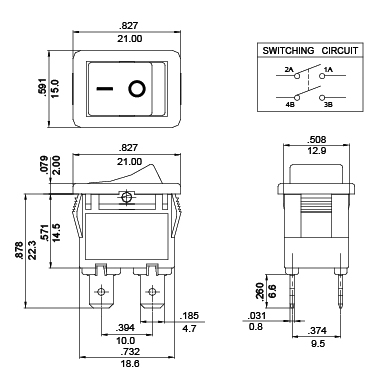

MR6-210C5W-NBBB

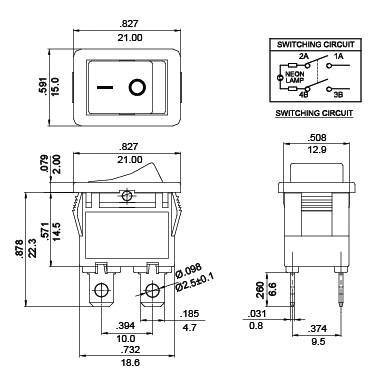

MR6-211C5W-GBRB

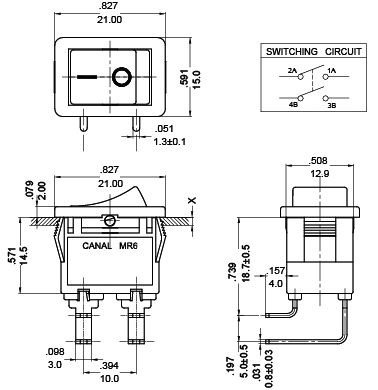

MR6-212C5W-NBBB

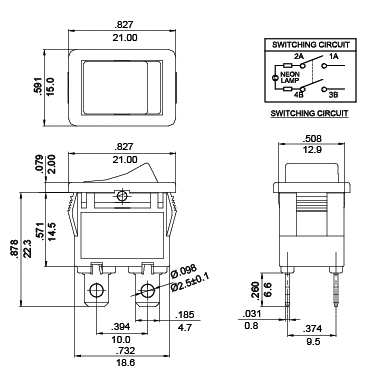

MR6-211C2N-LBWB
