Model：MR6 Series
American MR6 Series
Standard American Medium Rocker Switches Fitting 13.9x28.6mm DPST, SPST, Up To 20A 125V

MR6-series with a new design to fit the standard american cutout.
Optional selection of high current up to 20A 125VAC or 141A inrush.
Soler or quick connect terminals.
Add to inquiry
Feature



  • UL61058-1 (cURus , ENEC15)
    • 12(4)A 125/250V ~T55, T125/55 6E3, 1E4
    • 16(8)A 125/250V ~T55, T125/55 6E3, 1E4(opt)
    • 16A 6~30VDC, ~T55, T125/55 6E3, 1E4
    • 8[128]A 250V~ T55, 1E4(opt)
    • TV-10 /125V~T55, 25E3(opt)
  • UL1054 approved: (cURus), optional
    • 20A 125VAC, 16A 250VAC 6E3
    • TV-10 /125VAC 25E3
  • Initial contact resistance : 20m ohm (max.)
  • Insulation resistance : 100M ohm (min,) at 500VDC
  • Dielectric strength : 1,500VAC for 1 minute
  • Safety approved internationally by cURus in North America, ENEC15 in Europe
  • Standard 13.9x28.6mm snap-in American cutout size
  • DPST, SPST circuitry
  • Solder or quick connect terminals

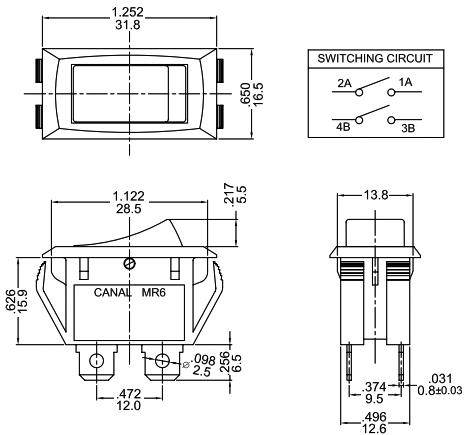

Specification

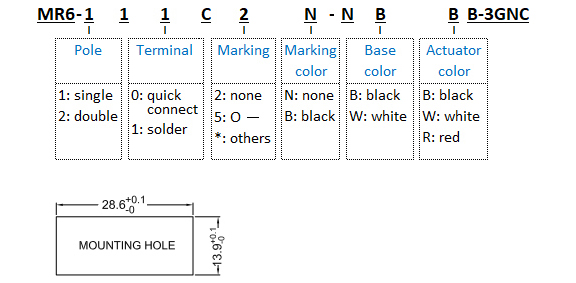

How to order





What is Inrush Current? And why MR6?
Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our MR6 series can offer an option up to TV10 or equivalent to 141A inrush that can be the appropriate switch to ensure your device's life and stability.

Item

MR6-211C2N-NBBB-3GNC
