Model：MR3 Series
MR3-R
dia. 20mm round rocker switches, 2P2T, 6 terminals, on-on or on-off-on, 10(4)A 250VAC

MR3 Round Rocker Switches up to 10(4)A 250VAC
Mini-rocker switches featuring DPDT, on-off-on, and on-on
6 terminals, splash-protection rubber boot available
Add to inquiry
Feature



  • 10A 125 / 250VAC (UL/CUL)
  • 10(4) 250V~T85 (FIMKO, ENEC)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Electrical life : 6000(UL) 10,000 cycles(ENEC)
  • Temperature range : -20 to + 85 degrees in Celsius
  • Base : Nylon 66, 94V-2 min.
  • Actuator : Nylon 66, 94V-2 min.
  • Spring : Piano wire
  • Contact arm : Silver plated copper alloy
  • Terminals : Silver plated copper

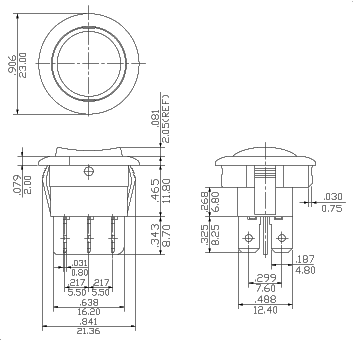

Specification

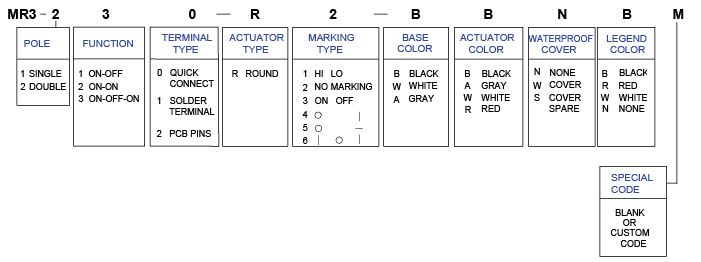

How to order

Panel Cutout

Item

MR3-230-R2-BBNN



Waterproof Cover
