HB, 13.8 x 28.6mm

HB, 13.8 x 28.6mm

Model：HB Series
HB
20A 125VAC, Bi-color actuator, up to 92A inrush current

SPST, SPDT ROCKER SWITCHES UP TO 20A 125VAC, IP42 RATING, T125
classical outlook, crystal lighting, 6A "L", splash protected
Add to inquiry
Feature



  • 20A 125VAC / 16A 250VAC (UL,CUL)
  • 6A 125VL, 3/4HP 250VAC(UL, CUL)
  • 16(4) A 250VAC~T125/55 (ENEC, CQC)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000VAC (UL), 3000 VAC(ENEC) for 1 minute
  • Electrical Life: 6000 (UL); 10000 (ENEC) cycles
  • Safety approved internationally by UL & CUL in North America, ENEC in Europe, CQC in Asia
  • Classical outlook and crystal lighting effect
  • Hightest Rating up to 20A 125VAC(UL, CUL)
  • Standard 13.8 x 28.6mm snap-in cutout size
  • IP40 & IP42 splash protected type available
  • Twin colors actuator available



Specification

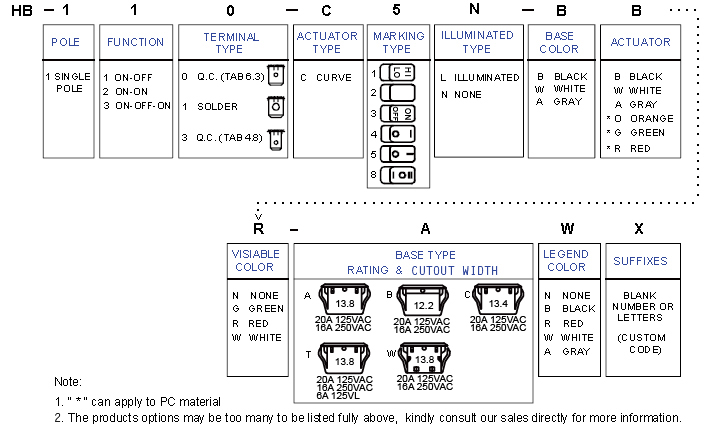

How to order

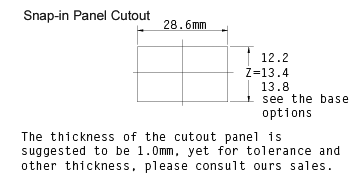

Panel cutout

Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our HB series can offer an option up to 6A'L' up to 92A inrush that can be the appropriate switch to ensure your device's life and stability.



Item

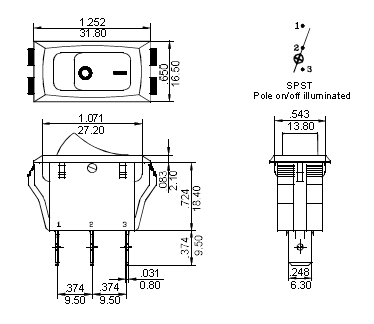

HB-110-C5L-BRN-AW

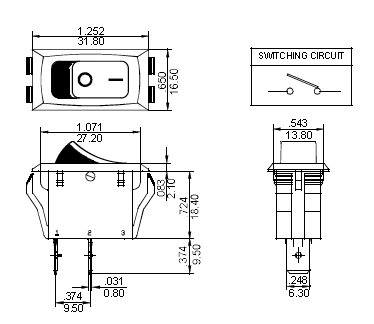

HB-110-C5N-BBR-AW

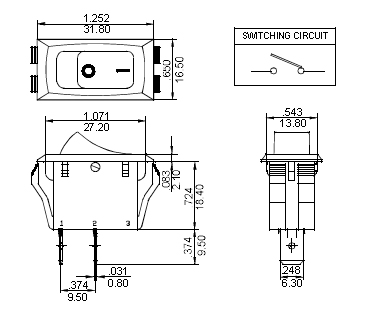

HB-110-C5N-BRN-AW

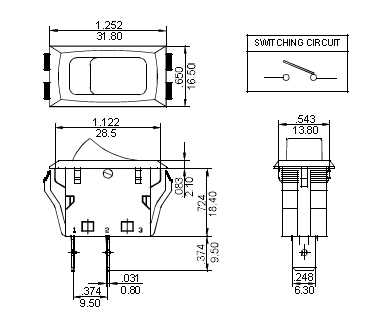

HB-110-C5N-BBN-WN
