Model：PS6 Series
UL, CUL & ENEC Recognized Square Push Switch Up to 6A 125/250VAC & 3A 48VDC Rating

12.4mm*11.0mm square type
SPST contacts with latching or momentary function
Rating up to 6A 125/250VAC & 3A 48VDC
Snap-in mounting
Add to inquiry
Feature



  • Rating:
    • ​​​​​6A 125/250V~µ10T85/55 (UL, CUL, ENEC)​
    • 6A GP 125/250V~µ10T85/55 (UL, CUL, ENEC)​
    • 3A 48VDC µ10T85/55 (UL, CUL, ENEC)​
  • Contact resistance : 20m ohm
  • Insulation resistance : DC500V 100M ohm (min.)
  • Dielectric voltage-withstand : 1,000 VAC for 1 minute
  • Life cycle : 10,000 cycles
  • Temperature range : -10 to + 85 degrees in Celsius
  • Panel cut-out: 12.4 x 11mm
  • Base : Nylon 94V-2 min.
  • Actuator: PC 94V-2 min.
  • Application: Commercial, electronics, home appliance, industrial, instruments, light control, etc.

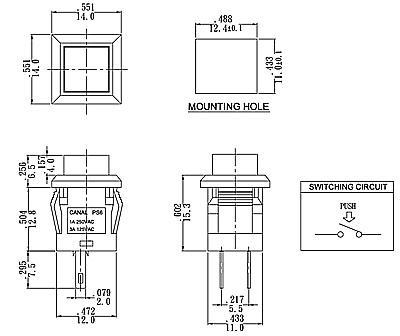

Specification

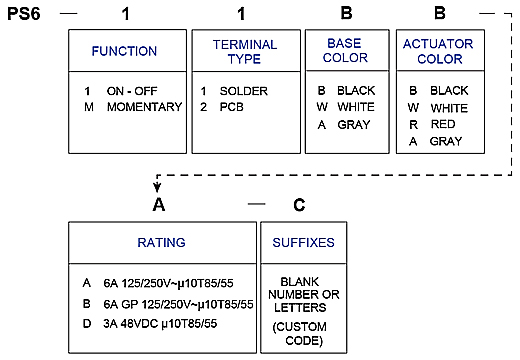

How to order

Item

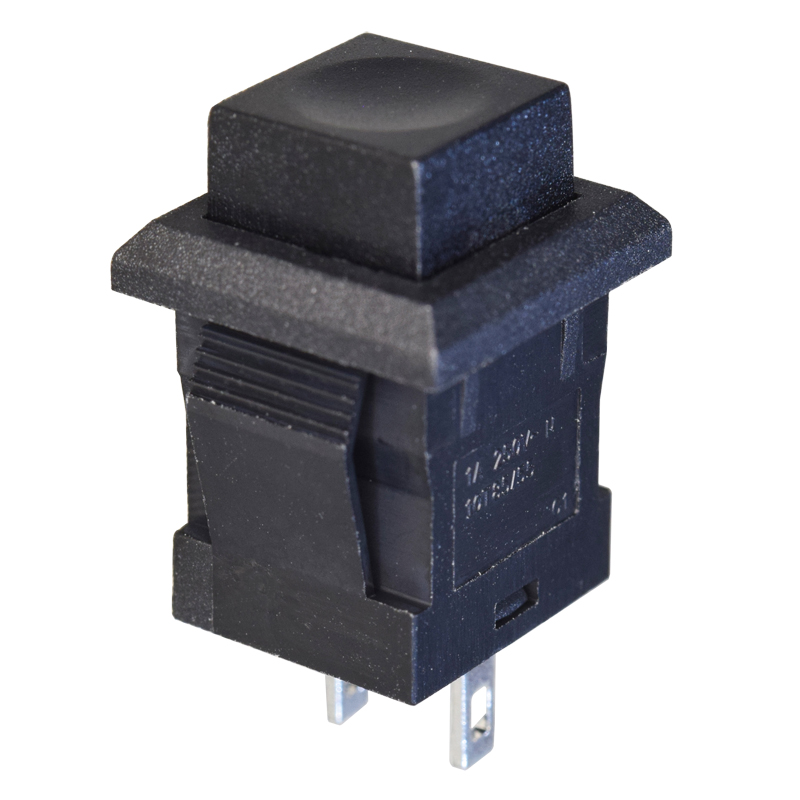

PS6-11BBA-C

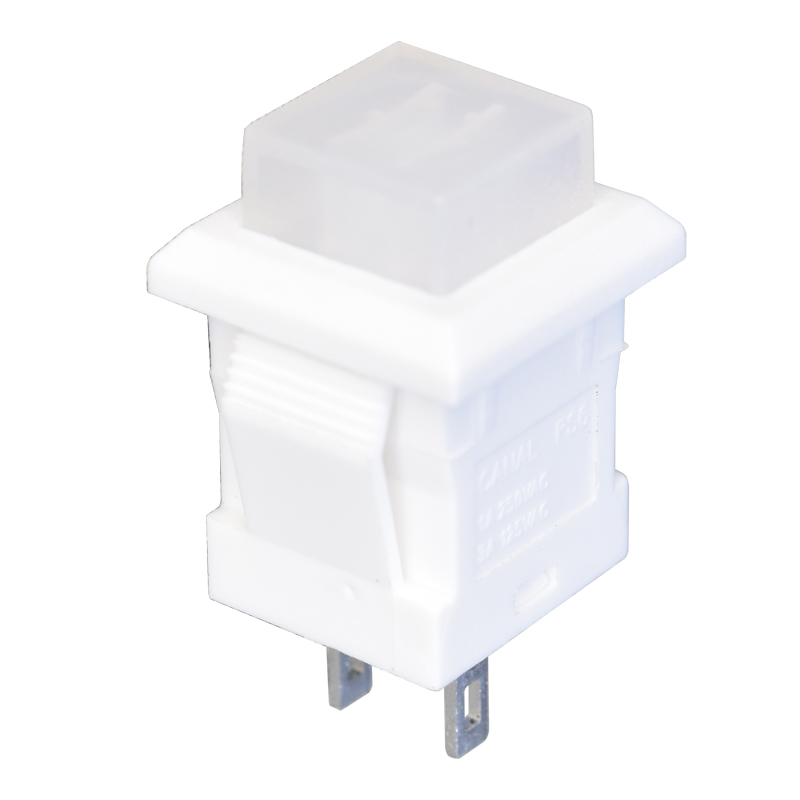

PS6-11WWA-C
