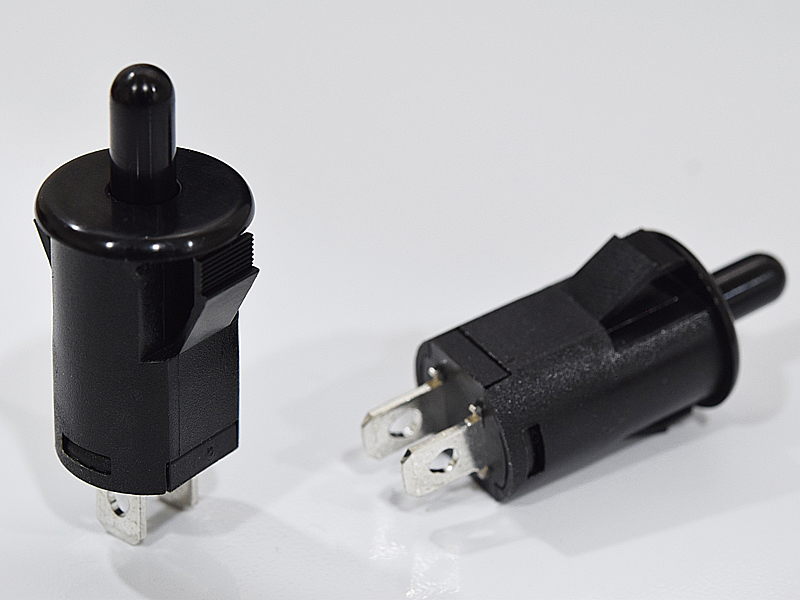

UL, CUL & ENEC Recognized Refrigerator Push Button Door Switch

UL, CUL & ENEC Recognized Refrigerator Push Button Door Switch

Model：ADP Series
ADP Series
UL, CUL & ENEC Recognized Refrigerator Push Button Door Switch, up to 12A 125/250VAC

SPST push on momentary function
Electrical rating up to 12A 125/250VAC, T105
Snap-in mounted
Quick-connect or soldering terminal
Add to inquiry
Feature



  • Rating: ​​
    • 12A GP 125/250VAC T105 (UL, CUL, ENEC)​
    • 3A GP 125/250VAC T105 (UL, CUL, ENEC)
    • 12A 125/250VAC T105 (UL, CUL, ENEC)
    • 3A 125/250VAC T105 (UL, CUL, ENEC)
  • Contact resistance: 20m ohm (max.)
  • Insulation resistance : 500M ohm (min,) at 500VDC
  • Dielectric withstanding voltage : 1500AC for 1 minutes.
  • Circuit function: OFF- (ON)
  • Electrical life: 10,000 cycles
  • Mechanical life: 50,000 cycles
  • Snap-in mounted
  • Quick-connect or soldering terminal
  • Application: home appliances, lighting, cabinet, vehicles, etc.

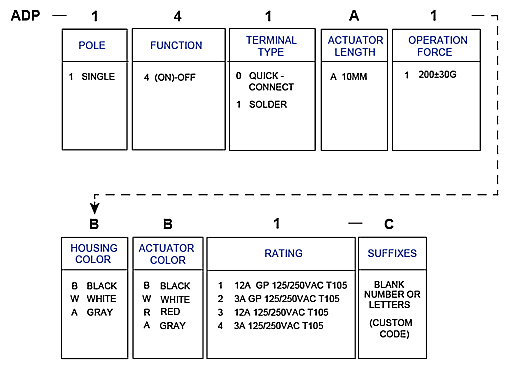

Specification

Item

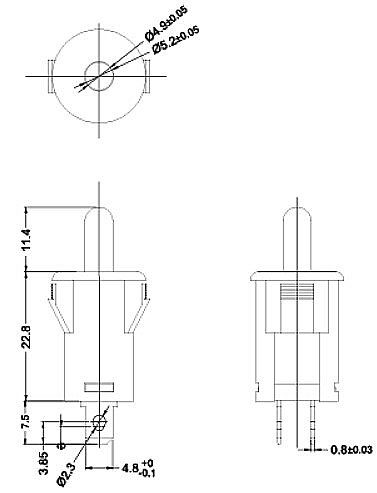

ADP-141A1-BB1
