PK-25 Series Anti-vandal Switches

PK-25 Series Anti-vandal Switches

Model：PK-25 Series
UL, CUL, ENEC, CQC & CE Recognized Switches with 6A 48VDC, meeting IP68 & IK10 or IP69K Protection Level

Up to 6A 48VDC, 6A 125/250VAC rating
Meeting IP68 & IK10 or IP69K protection level
M25 bushing screw mounting
M19, M22 & M28 bushing available
Pushbutton, emergency stop, select & keylock switches optional
Add to inquiry
Feature



  • 6A 125/250V~µ5E4 (cURus, ENEC15, CQC, CE)
  • 6A 3~48VDC 3E4 (cURus, ENEC15, CQC, CE)
  • Contact resistance: 50m Ω (max.) initial
  • Insulation resistance: 100M Ω (min)
  • Dielectric strength : 2,000VAC for 1 minute
  • Mechanical life: 200,000 cycles
  • Electrical life: 50,000 cycles
  • IP68 & IK10 protection level
  • IP69K protection level (optional)
  • Rring, spot, power symbol illuminated type
  • 1, 2 pole circuitry; OFF-(ON), OFF-ON, ON-(ON) or ON-ON
  • M25 bushing screw mounting, M19, M22 & M28 bushing available
  • Pushbutton, emergency stop, mushroom, select & keylock actuator type optional
  • Optional case material and surface treatment
  • Ring & power symbol illuminated icon available



Specification

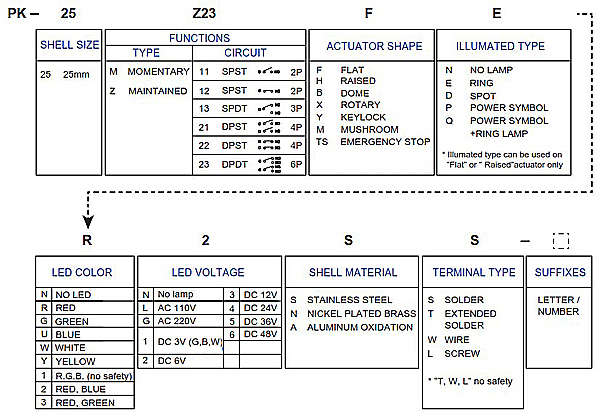

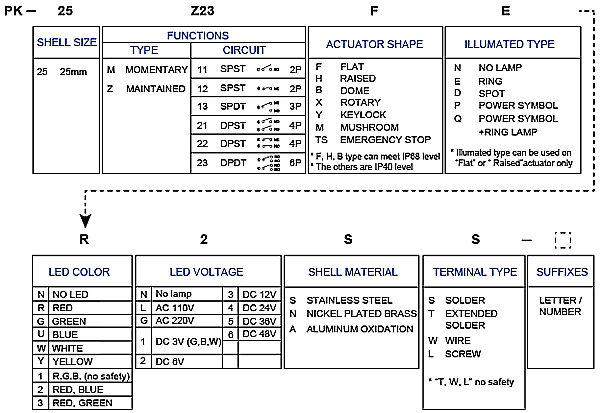

How to order

Panel cutout



Item

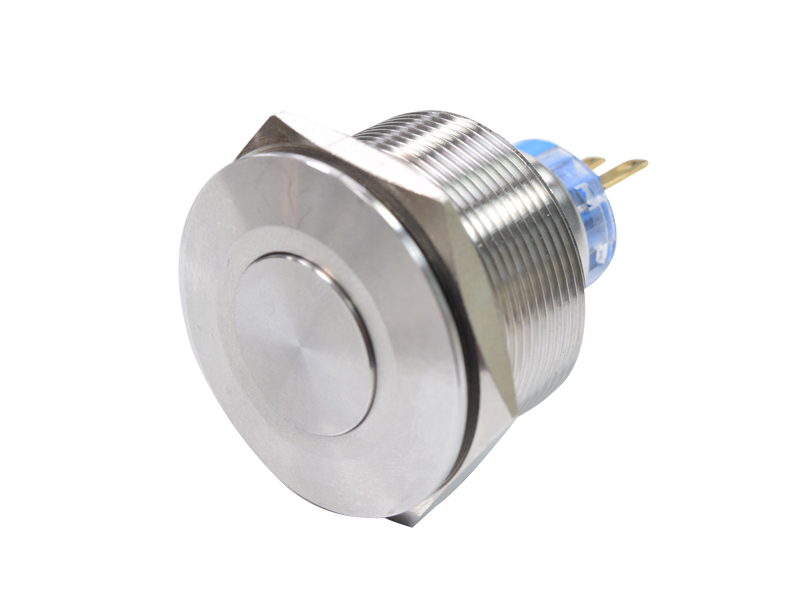

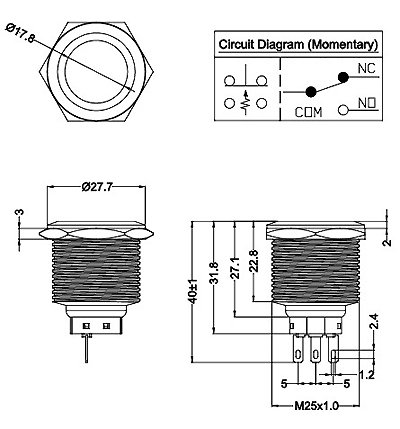

PK-25M13FNNNSS

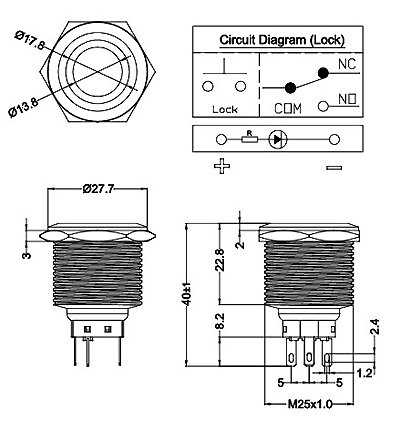

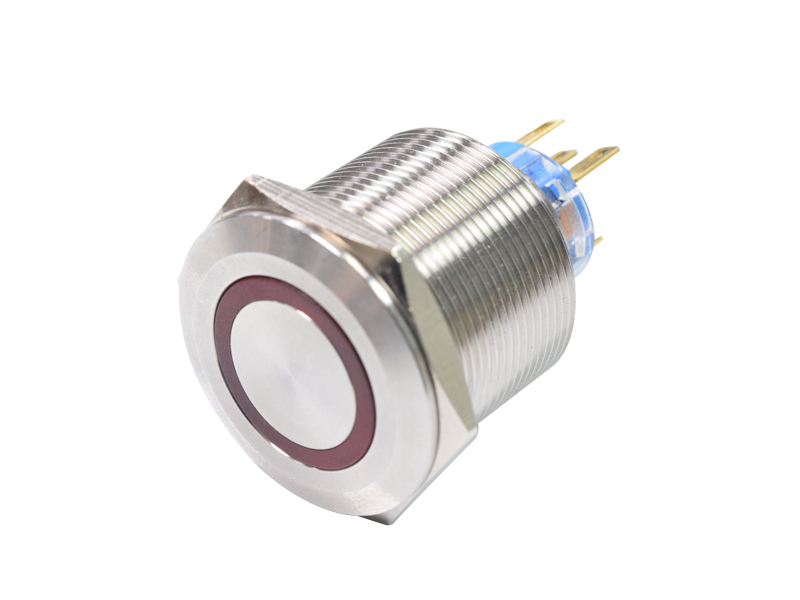

PK-25Z13FER3SS

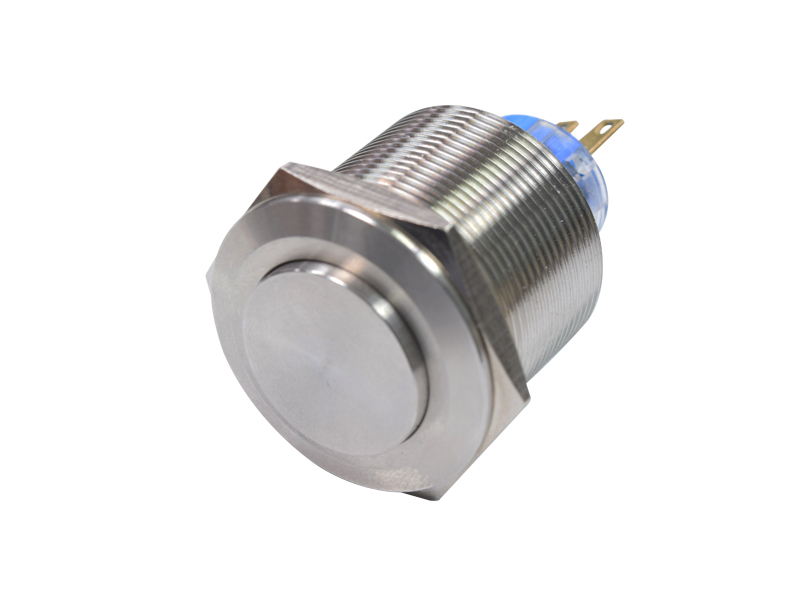

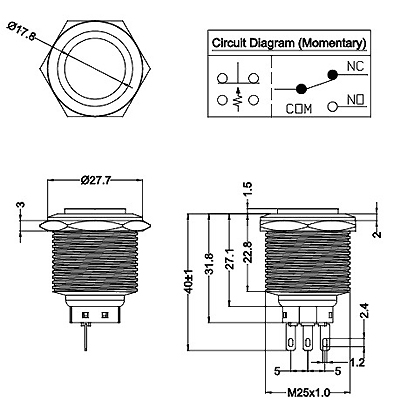

PK-25M13HNNNSS



Accessory - Connector

Sealed wire leads upon request
