T7B Low Profile Tact Switches
T7B Low Profile Tact Switches
型號：T7B
T7B

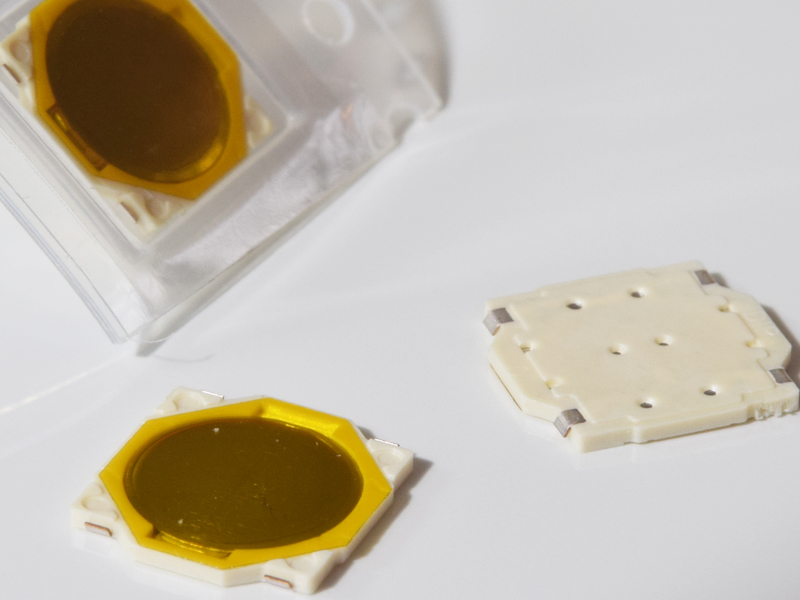

Low Profile Tact Switches, 0.6mm in Height, 5M Life Cycles, 100g, 160g or 200g Operation Force
Low profile tact switches with height 0.6mm only
Long life up to 5M cycles
Reel package
Halogen free material
For applications of auto industries, portable devices
加入詢問
Low Profile Tact Switches, 0.6mm in Height, 5M Life Cycles, 100g, 160g or 200g Operation Force
Low profile tact switches with height 0.6mm only
Long life up to 5M cycles
Reel package
Halogen free material
For applications of auto industries, portable devices
Feature
- 50mA, 12VDC
- Contact resistance: 500mΩ max. at initial.
- Dielectric strength : 100VAC/1minute.
- Insulation resistance: 10MΩ min., at 100VDC
- Terminals for SMT mounting
- Travel: 0.25mm
- Electrical life : 5,000,000 cycles
- Operation Temp.: -40 to 85 ℃
- Storage Temp.: -40 to 90 ℃

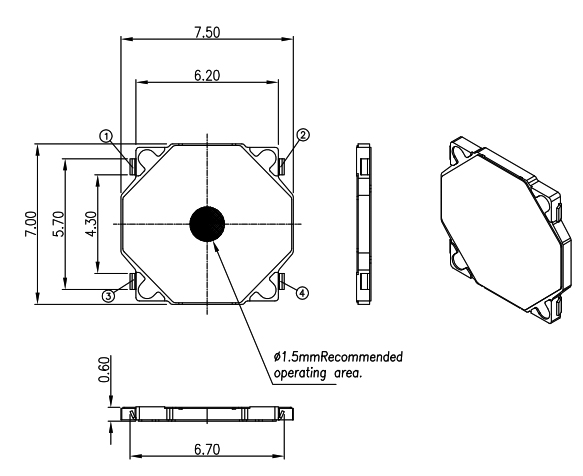

Specification

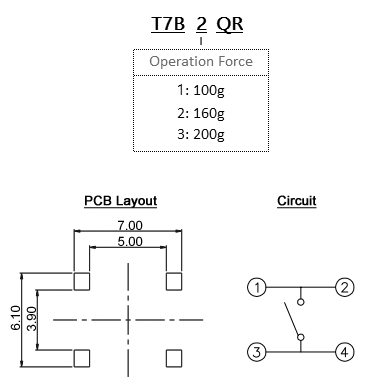

How to order
Item
