T3C2QR, 3.0*2.0mm Tact switch with ultra low profile 0.60mm only
T3C2QR, 3.0*2.0mm Tact switch with ultra low profile 0.60mm only
型號：T3C2QR
T3C2QR
Tact switch with ultra low profile 0.60mm only, Compact-size 3.0*2.0mm; Long operation cycles
Waterproof and dustproof features, perfect for Smart Watches, Smart Glasses, and all kinds of portable smart devices.
With high reliability, the operational life reaches 300,000 cycles.
加入詢問
Tact switch with ultra low profile 0.60mm only, Compact-size 3.0*2.0mm; Long operation cycles
Waterproof and dustproof features, perfect for Smart Watches, Smart Glasses, and all kinds of portable smart devices.
With high reliability, the operational life reaches 300,000 cycles.
Feature
- 50mA, 12VDC
- Initial contact resistance: 500mΩ max.
- Insulation resistance: 100MΩ min. (at 100VDC)
- Dielectric strength: 100VAC for 1 minute
- Operating life: 300,000 cycles
- Operating temperature range: -40 ~ 85ºC
- Operating force: 160 ± 50g
- Function: push ON

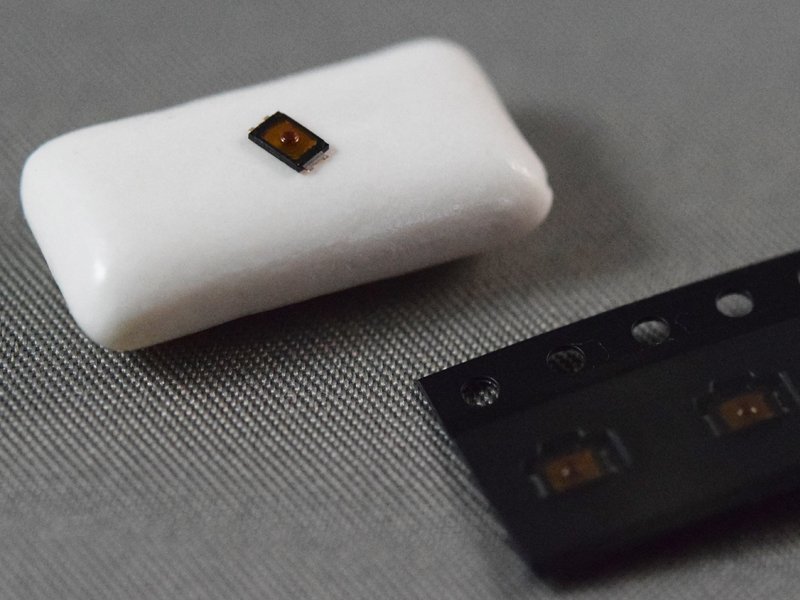

- Tape & reel package
Specification

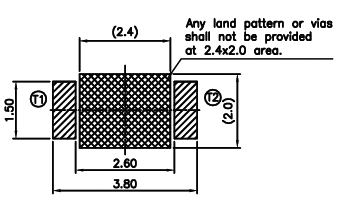

PCB Layout
Item

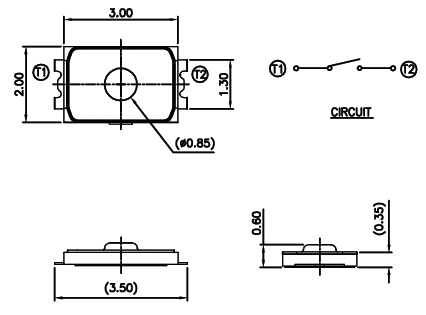

Drawing:
 |
 |
