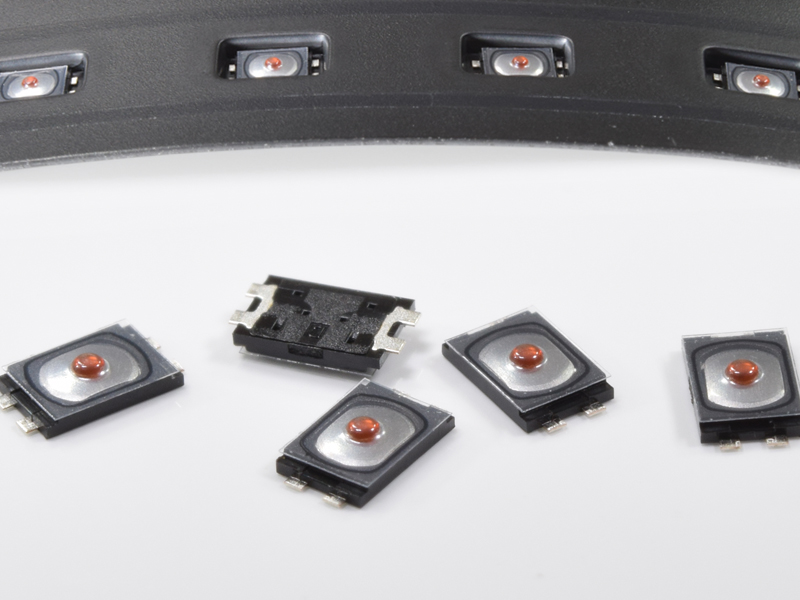

T1B2QR 2.6x1.6mm Ultra-small SMT Tact Switch
T1B2QR 2.6x1.6mm Ultra-small SMT Tact Switch
型號：T1B2QR
T1B2QR
2.6x1.6 Ultra-small SMT Tact Switch, 0.55mm in Height only, 200K Cycles, 160g Operation Force
Ultra small tact switch, 20mA 15VDC
Vertical smt mounting
Tape&reel packaging
Halogen free
For the applications of portable devices, medical or 3C products
加入詢問
2.6x1.6 Ultra-small SMT Tact Switch, 0.55mm in Height only, 200K Cycles, 160g Operation Force
Ultra small tact switch, 20mA 15VDC
Vertical smt mounting
Tape&reel packaging
Halogen free
For the applications of portable devices, medical or 3C products
Feature
- 20mA 15VDC
- Contact resistance: 500mΩ max. at initial
- Dielectric strength : 250VAC/1minute
- Insulation resistance: 50MΩ min., at 100VDC
- Terminals for SMT mounting
- Travel: 0.11mm
- Operation force: 160g
- Electrical life : 200,000 cycles
- Operation Temp.: -40 to 85 ℃
- Storage Temp.: -40 to 85 ℃
