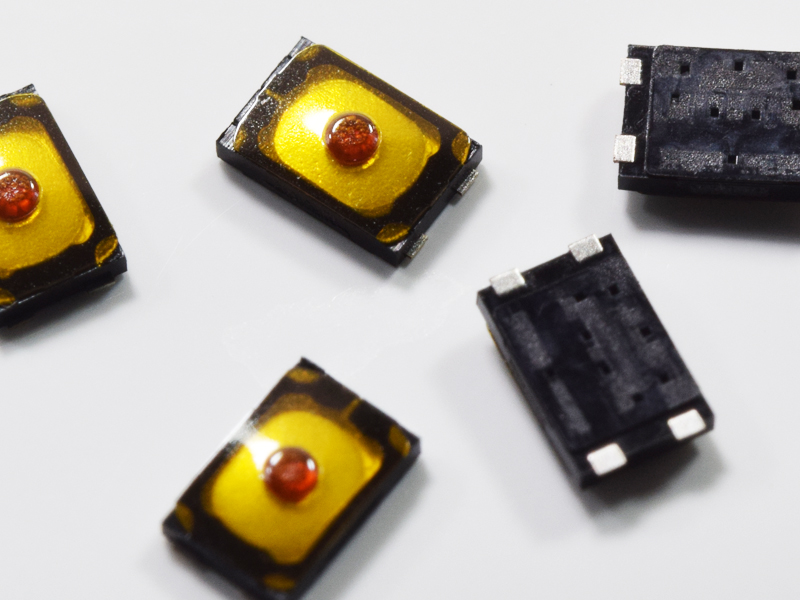

T1A2QR, 2.8x1.9 mm Ultra-small SMT Tact Switch
T1A2QR, 2.8x1.9 mm Ultra-small SMT Tact Switch
型號：T1A2QR
T1A2QR
2.8x1.9 Ultra-small SMT Tact Switch, 0.6mm in Height only, 300K Cycles, 160g or 200g Operation Force
Ultra small tact switch, 50mA 12VDC
Vertical smt mounting
Tape&reel packaging
Halogen free
For the applications of portable devices, medical or 3C products
加入詢問
2.8x1.9 Ultra-small SMT Tact Switch, 0.6mm in Height only, 300K Cycles, 160g or 200g Operation Force
Ultra small tact switch, 50mA 12VDC
Vertical smt mounting
Tape&reel packaging
Halogen free
For the applications of portable devices, medical or 3C products
Feature
- 50mA 12VDC
- Contact resistance: 500mΩ max. at initial
- Dielectric strength : 250VAC/1minute
- Insulation resistance: 100MΩ min., at 100VDC
- Terminals for SMT mounting
- Travel: 0.13mm
Operation force: 160g or 200g - Electrical life : 300,000 cycles
- Operation Temp.: -40 to 85 ℃
- Storage Temp.: -40 to 85 ℃

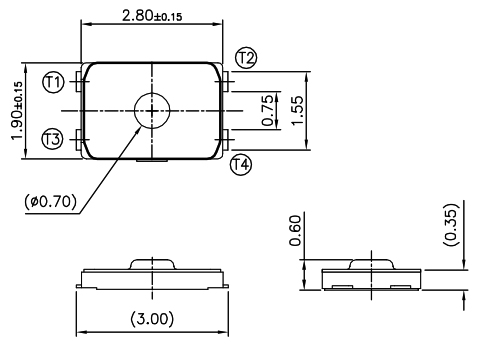

Specification

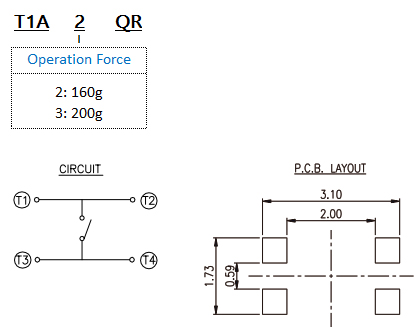

How to order
Item
