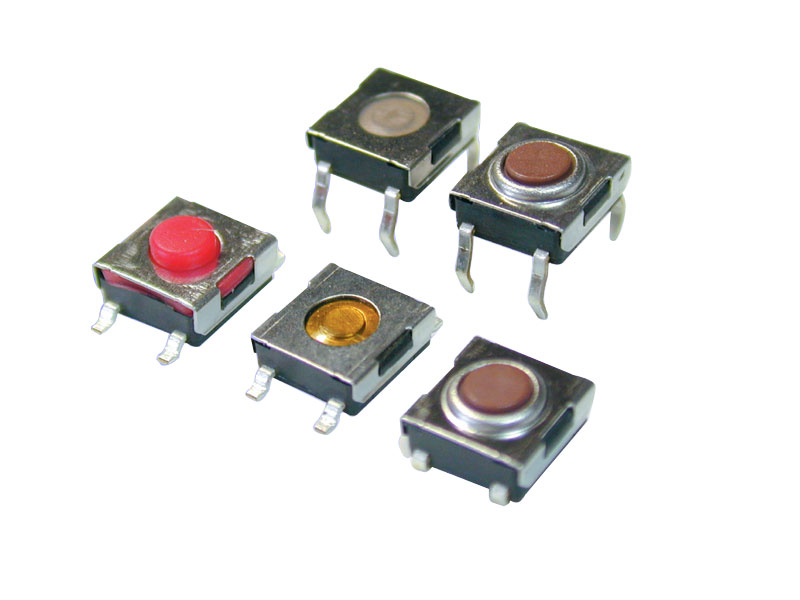

DTSH(M)W-6, Washable type
DTSH(M)W-6, Washable type
型號：DTSH(M)W-6
DTSH(M)W-6
Washable type
DTSHW6, DTSMW66x6, washable, through hole or SMT, mechanical contact, up to 50mA, 12VDC
加入詢問
Washable type
DTSHW6, DTSMW66x6, washable, through hole or SMT, mechanical contact, up to 50mA, 12VDC
Feature
- Rating : 50mA,12VDC.
- Contact resistance : 100m ohm max.
- Insulation resistance : 100Mohm min. 500VDC.
- Dielectric strength : 250VAC/1minute.
- Washable type
- Body size: 6mmx6mm
- SPST, push on
- Optional body height and operating force
- Thro-hole and SMT type terminal
- Tube and Tape and reel (SMT) package
Specification

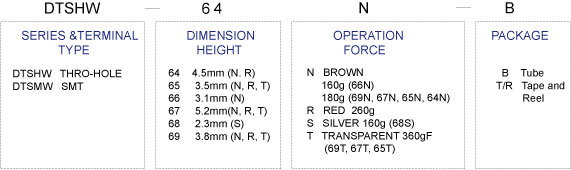

How to order
Item

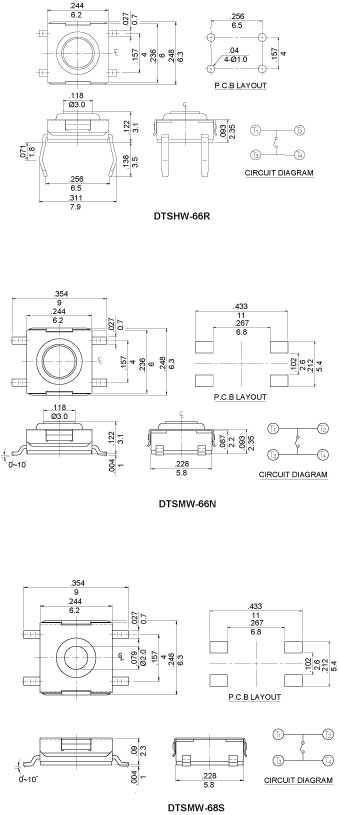

Dimensions:
