型號：TII, TIIR, TIM, TIMR Series
TII, TIIR, TIM, TIMR
Tri-State Dip Switches, Low Profile, 2.54mm Pitch, SMT or Through Hole Terminals
Tri-State Low profile dip switches
4, 8, 9 or 10 Poles
Raised or recessed actuator
加入詢問
Tri-State Dip Switches, Low Profile, 2.54mm Pitch, SMT or Through Hole Terminals
Tri-State Low profile dip switches
4, 8, 9 or 10 Poles
Raised or recessed actuator
Feature
- Switching rating : 25mA, 24VDC.
- Contact resistance : 100mΩ max. at initial.
- Dielectric strength : 500VAC/1minute.
- Circuit : 3 switching positions
- Electrical life : 2,000 operation cycles per switch 24VDC, 25mA
- Mechanical life: 2,000 operations
- Operation force: 1,000 gf. max.
- Stroke: 0.8mm
- Operation Temp.: -20 to + 85 ℃
- Storage Temp.: -40 to + 85 ℃
- Base & Cover: UL94V-0 Nylon High-temp Thermoplastic. Black
- Actuator: UL94V-0 LCP High-temp Thermoplastic. White
- Contact: Alloy Cooper with gold plated
Specification

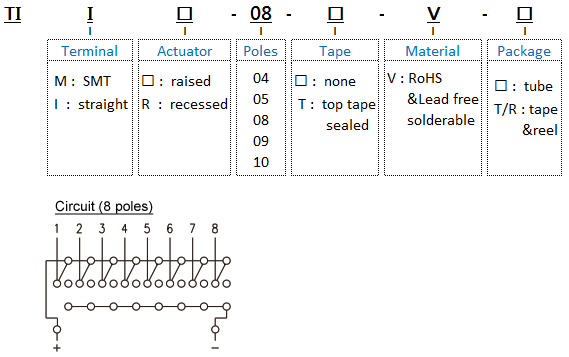

How to order
Item

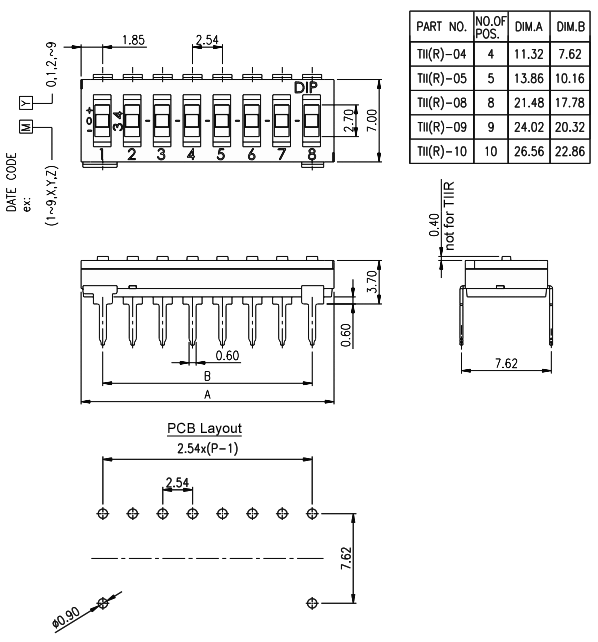

TII, TIIR

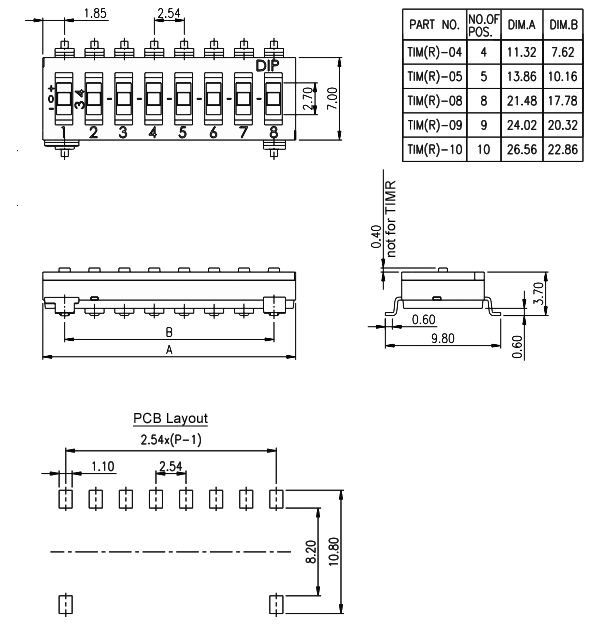

TIM, TIMR
