型號：RS, RSR Series
RS, RSR
Slide Dip Switches, 2.54mm Pitch, up to 12 poles, Blue, Black or Red Color, Gold-plated PCB Terminal
Slide dip Switches
2.54mm pitch
1 to 10 or 12 poles
Top tape sealed available
加入詢問
Slide Dip Switches, 2.54mm Pitch, up to 12 poles, Blue, Black or Red Color, Gold-plated PCB Terminal
Slide dip Switches
2.54mm pitch
1 to 10 or 12 poles
Top tape sealed available
Feature
- Non-switching rating : 100mA, 50VDC
- Switching : 50mA, 24VDC
- Electrical life : 5,000 operation cycles per switch, 50mA, 24VDC.
- Contact resistance : 50m ohm max, at initial.
- Insulation resistance : 100M ohm min. at 500VDC.
- Dielectric strength : 500VAC/1minute.
- Circuit : single throw, with 1~10, or 12 poles
- Temperature range : -25 to 70 degrees in Celsius
- Base : UL94V0, PBT plus glassfiber, black color
- Cover : UL94V0, PBT plus glassfiber, red, blue or black color
- Actuators : UL94V0, PBT plus glassfiber, white color
- Terminals&Contacts : Phosphor bronze, gold plating over nickel
- Top sealed tape available , Polyester film

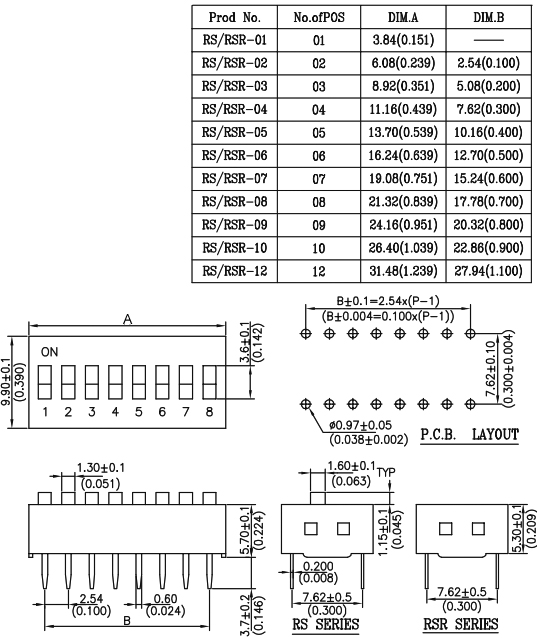

Specification

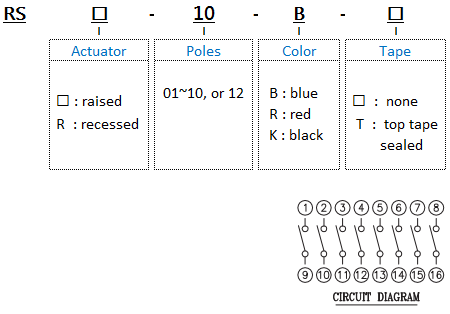

How to order
Item
Spec
