型號：RP, RPL Series
RP, RPL
Piano Dip Switches , 2.54mm pitch, up to 10 poles, Black, Red or Blue Color, PCB Terminals
Piano Dip Switches , 2.54mm pitch
2 to 8 or 10 poles
Black, Red or Blue Color
PCB Terminals, gold plated
Top tape sealed available
加入詢問
Piano Dip Switches , 2.54mm pitch, up to 10 poles, Black, Red or Blue Color, PCB Terminals
Piano Dip Switches , 2.54mm pitch
2 to 8 or 10 poles
Black, Red or Blue Color
PCB Terminals, gold plated
Top tape sealed available
Feature
- Non-switching rating : 100mA, 50VDC
- Switching : 50mA, 24VDC
- Electrical life : 2,000 operation cycles per switch, 50mA, 24VDC.
- Contact resistance : 50m ohm max, at initial.
- Insulation resistance : 100M ohm min. at 500VDC.
- Dielectric strength : 500VAC/1minute.
- Circuit : single throw, with 2 to 8 or 10 poles
- Temperature range : -25 to + 70 degrees in Celsius
- Base : UL94V0, PBT plus glassfiber, black color
- Cover : UL94V0, PBT plus glassfiber, red or blue color
- Actuators : UL94V0, PBT plus glassfiber, white color
- Terminals&Contacts : Phosphor bronze, gold plating over nickel, silver plating optional, epoxy sealed
- Top sealed tape available , Polyester film
- Pressed-down keys to ON position for standards
- Pressed-down keys to OFF positions available

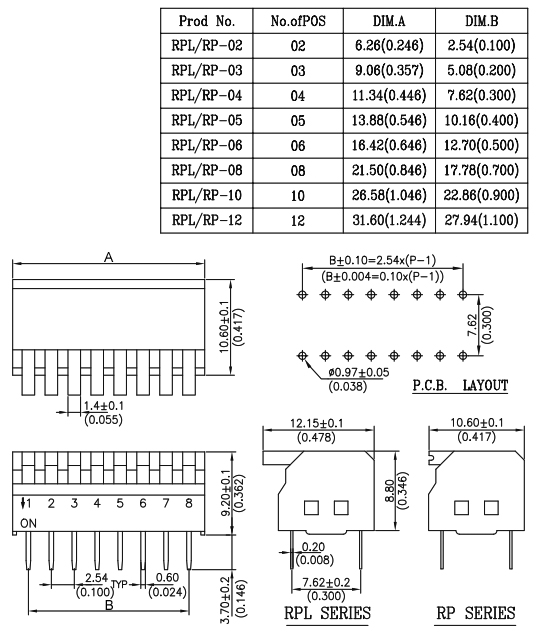

Specification

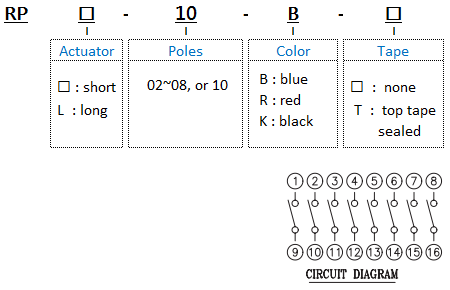

How to order
Item
Spec
