型號：RM, RV, RH, RS
RM, RV, RH, RS
Rotary Encoder switches, 10, 16 STEPS, 4X1, 3X3, 3X2 Termials, Right Angled, Through Hole or SMT
10, 16 STEPS, 4X1, 3X3, 3X2 terminals
Real codes or reversed printing code available
Flat or high actuator
Horizontal or right-angled mounting
加入詢問
Rotary Encoder switches, 10, 16 STEPS, 4X1, 3X3, 3X2 Termials, Right Angled, Through Hole or SMT
10, 16 STEPS, 4X1, 3X3, 3X2 terminals
Real codes or reversed printing code available
Flat or high actuator
Horizontal or right-angled mounting
Feature
- Non-switching rating : 100mA,50VDC.
- Switching rating : 25mA, 24VDC.
- Contact resistance : 100m Ohm max. at initial.
- Insulation resistance : 100M ohm min at 250VDC
- Dielectric strength : 250VAC/1minute.
- Base&Cover : UL94V-0 Nylon, black color
- Actuator : UL94V-0 LCP Thermoplastic, white color
- Contact : Copper alloy with gold plated over nickel
- Terminals : Brass with gold plated
- Mechanical Life: 20,000 steps, 200m Ohm max.
- Operational Force: 200gf
- Operating Temp.: -40~85 degrees in Celsius
Specification

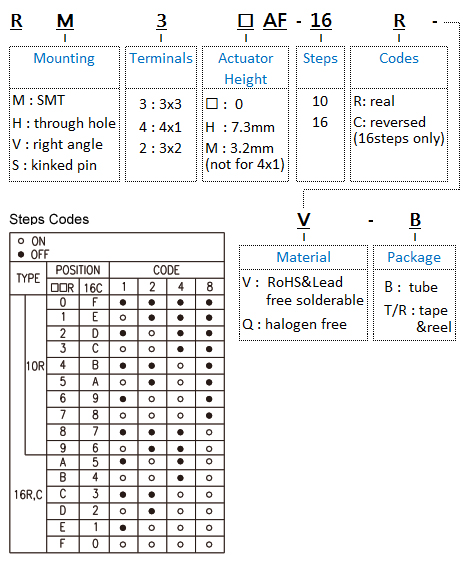

How to order
Item

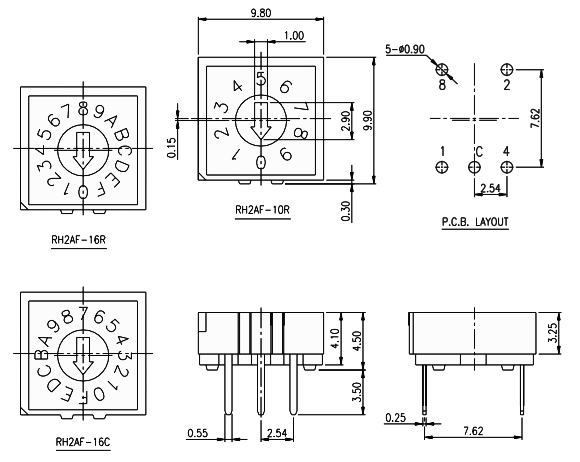

RH2-spec

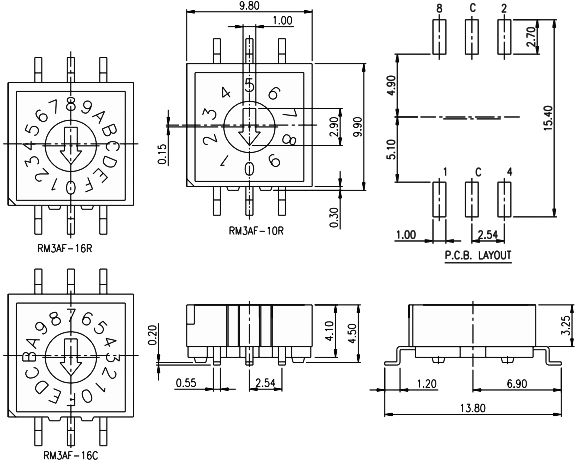

RM3-spec

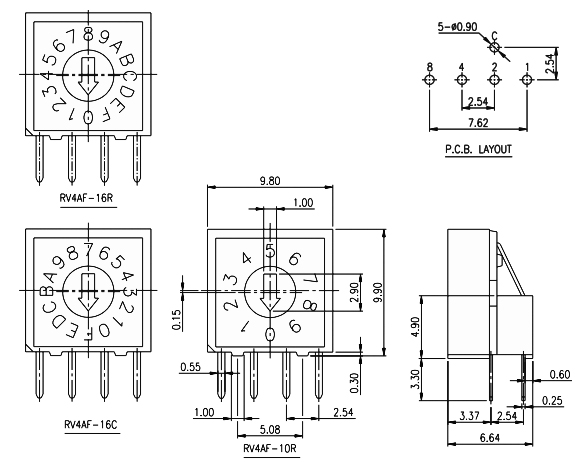

RV4-spec

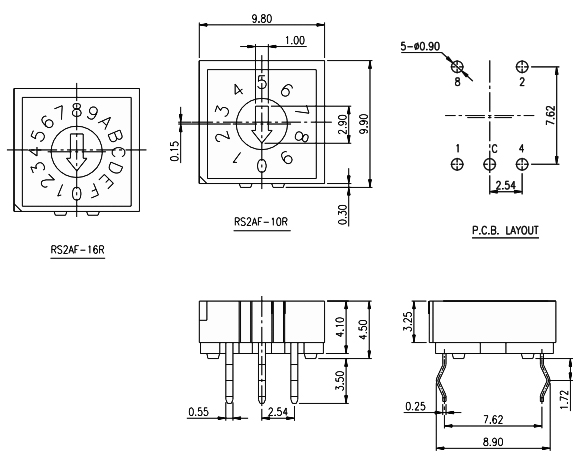

RS2-spec
