型號：NDA-Series
NDA-Series
Pitch 2.54mm Slide Dip Switches, Right-Angled PCB Terminals, 2~10 or 12 Poles, Red, Black or Blue
Pitch 2.54mm dip switches
Slide Acutator
Right-Angled PCB Terminals
Red, Black or Blue Body
加入詢問
Pitch 2.54mm Slide Dip Switches, Right-Angled PCB Terminals, 2~10 or 12 Poles, Red, Black or Blue
Pitch 2.54mm dip switches
Slide Acutator
Right-Angled PCB Terminals
Red, Black or Blue Body
Feature
- Non-switching rating : 100mA,50VDC.
- Switching rating : 25mA, 24VDC.
- Electrical life : 2,000 operation cycles per switch 24VDC, 25mA
- Contact resistance : 50mΩ max. at initial.
- Insulation resistance : 100M ohm min (at 500VDC)
- Dielectric strength : 500VAC/1minute.
- Circuit : SPST
- Operating Temperature range:-40 to + 85℃
- Storage Temperature range:-40 to + 85 ℃
- Base& Cover& Actuator : UL94V-0 PBT Thermoplastic
- Contact: Phosphor bronze, gold plated
- Terminals: Phosphor bronze, gold plated
- Top Sealed tape available
Specification

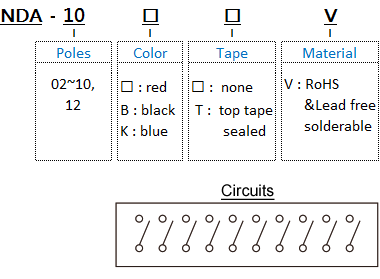

How to order
Item

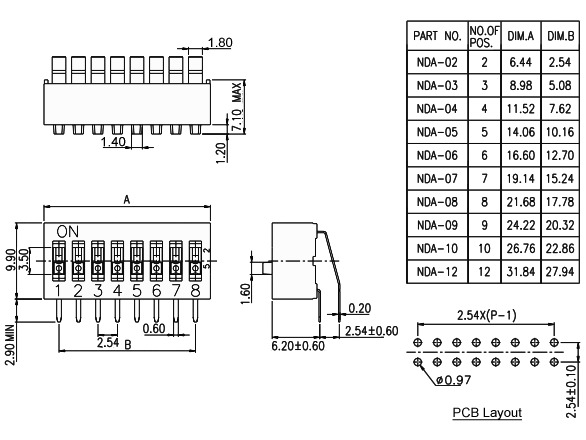

Drawing
