型號：EPI, EPM, EPIR, EPMR Series
EPI, EPM, EPIR, EPMR Series
2.54mm Pitch, End Stackable & Piano Type, SMT or Through Hole Terminals, Raised or Recessed Actuator
End stackable piano type dip switches
SMT & through hole terminals
2, 4, 6, 8 or 10 poles
加入詢問
2.54mm Pitch, End Stackable & Piano Type, SMT or Through Hole Terminals, Raised or Recessed Actuator
End stackable piano type dip switches
SMT & through hole terminals
2, 4, 6, 8 or 10 poles
Feature
- Switching rating : 25mA, 24VDC
- Non-Switching: 100mA, 50VDC
- Contact resistance: 100mΩ max. at initial.
- Dielectric strength : 500VAC/1minute.
- Insulation resistance: 100MΩ min., at 500VDC
- Electrical life : 2000 operation cycles per switch 24VDC, 25mA
- Mechanical life: 2000 operations
- Operation Temp.: -20 to + 85 ℃
- Storage Temp.: -40 to + 85 ℃
- Base & Cover: UL94V-0 Nylon High-Temp Thermoplastic, color black.
- Stem: UL94V-0 Nylon High-Temp Thermoplastic. color white
- Contact: Alloy Cooper with gold clading
- Terminal: Brass with gold
Specification

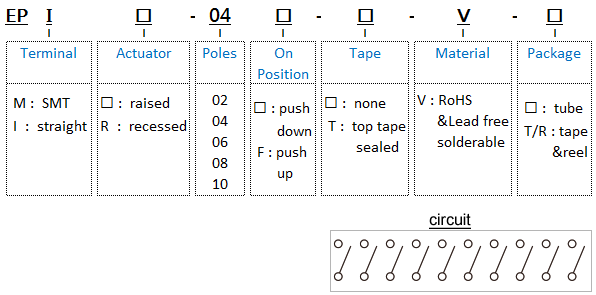

How to order
Item

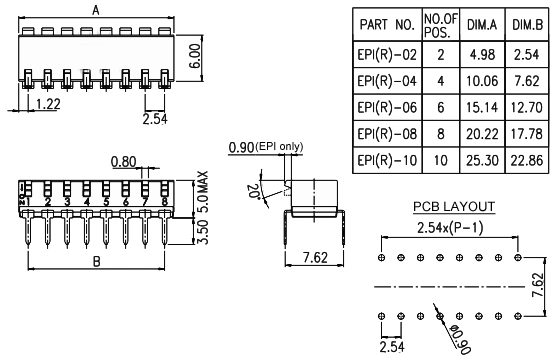

EPI, EPIR

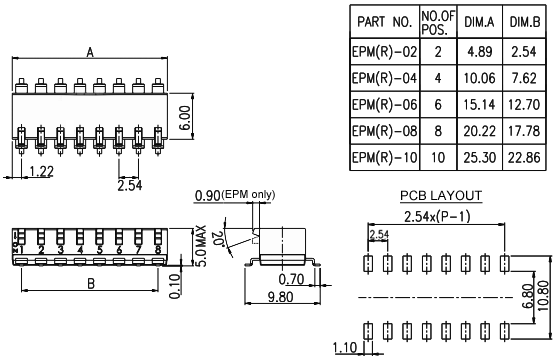

EPM, EPMR
